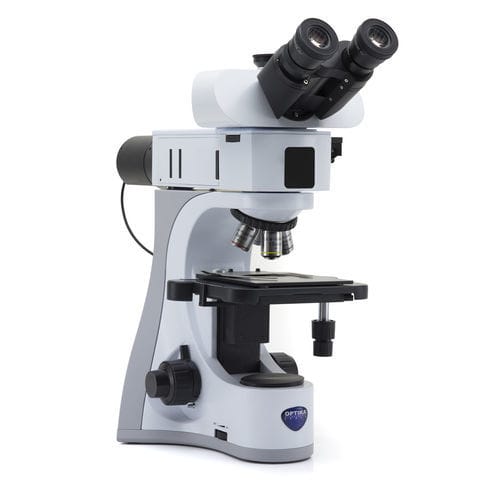

Optical microscope B-510MET

laboratorytrinocularplan

Epi-illumination and filters: X-LED8 with white 8 W LED (6.300 K) with brightness control. With aperture and field diaphragms, and oblique illumination system. With polarizer and analyzer. Multi-plug 100-240Vac/6Vdc external power supply. Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating. Interpupillary distance: Adjustable between 50 and 75 mm. Dioptric adjustment: On the left eyepiece tube. Eyepieces: WF10x/22 mm, high eye-point and with rubber cups. Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings. Objectives (strain-free): – IOS W-PLAN MET 5x/0.12 – IOS W-PLAN MET 10x/0.25 – IOS W-PLAN MET 20x/0.40 – IOS W-PLAN MET 50x/0.75 All with anti-fungus treatment. Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range. Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
