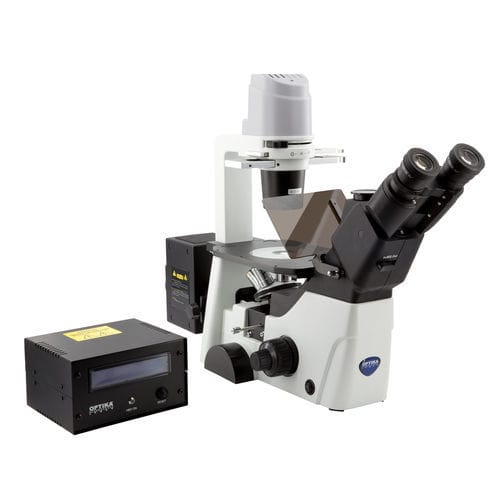

HBO fluorescence microscope IM-300F

opticallaboratorytrinocular

Epi-illumination and filter: HBO 100 W high pressure mercury lamp. 3-position filter holder; blue & green included. Interpupillary distance: Adjustable between 50 and 75 mm. Dioptric adjustment: On the left eyepiece tube. Eyepieces: WF10x/22 mm, high eye-point and with rubber cups. Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings. Objectives: IOS LWD W-PLAN PH 10x/0.25 IOS LWD W-PLAN PH 20x/0.40 IOS LWD W-PLAN PH 40x/0.65 All with anti-fungus treatment. Specimen stage: Fixed stage, 250×160 mm, with glass and metal stage inserts. Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm. With 4x/10x, 20x/40x phase contrast slider and brightfield. Transmitted illumination: X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. Multi-plug 100-240Vac/6Vdc external power supply. Standard filtersets Name: B (Blue) Excitation filter (nm): 465-495 Dichroic mirror cut-off (nm): 505 Emission filter (nm): 515LP Name: G (Green) Excitation filter (nm): 527-553 Dichroic mirror cut-off (nm): 565 Emission filter (nm): 575LP
