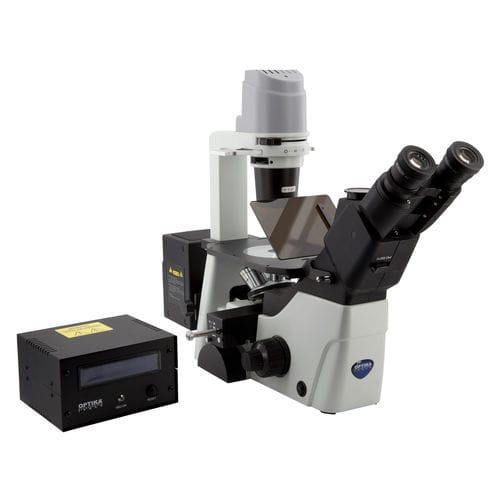

HBO fluorescence microscope IM-300FL4

opticallaboratorytrinocular

Interpupillary distance: Adjustable between 50 and 75 mm. Dioptric adjustment: On the left eyepiece tube. Eyepieces: WF10x/22 mm, high eye-point and with rubber cups. Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings. Objectives: IOS LWD U-PLAN F 10x/0.30 IOS LWD U-PLAN F 20x/0.45 IOS LWD U-PLAN F 40x/0.65 All with anti-fungus treatment. Specimen stage: Fixed stage, 250×160 mm, with glass and metal stage inserts. Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm. Transmitted illumination: X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. Multi-plug 100-240Vac/6Vdc external power supply. Standard filtersets Name: B (Blue) Excitation filter (nm): 465-495 Dichroic mirror cut-off (nm): 505 Emission filter (nm): 515LP Name: G (Green) Excitation filter (nm): 527-553 Dichroic mirror cut-off (nm): 565 Emission filter (nm): 575LP Additional filterset (optional) Name: V (Violet) Excitation filter (nm): 390-420 Dichroic mirror cut-off (nm): 440 Emission filter (nm): 455LP Name: UV Excitation filter (nm): 325-375 Dichroic mirror cut-off (nm): 415 Emission filter (nm): 435LP
