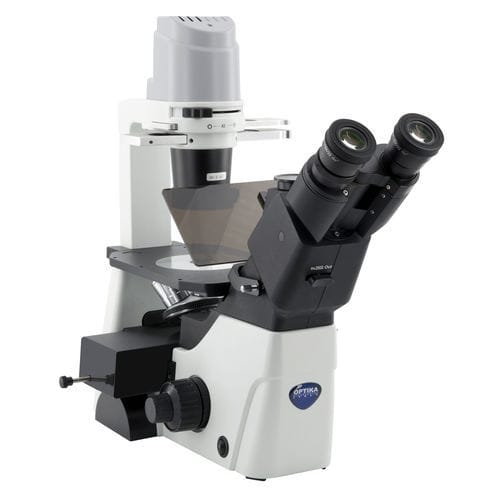

Optical microscope IM-300LD2

laboratorytrinocularphase contrast

Epi-illumination and filter: High-power LED with brightness control. 3-position filter holder; blue and green filtesets included. Head: Trinocular (2-position 100/0, 0/100), 45° inclined. Interpupillary distance: Adjustable between 50 and 75 mm. Dioptric adjustment: On the left eyepiece tube. Eyepieces: WF10x/22 mm, high eye-point and with rubber cups. Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings. Objectives: IOS LWD W-PLAN PH 10x/0.25 IOS LWD W-PLAN PH 20x/0.40 IOS LWD W-PLAN PH 40x/0.65 All with anti-fungus treatment. Specimen stage: Fixed stage, 250×160 mm, with glass and metal stage inserts. Mechanical stage as option. Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm. With 4x/10x, 20x/40x phase contrast slider and brightfield. Transmitted illumination: X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. 100-240Vac/12Vdc external power supply Name: Blue LED emission (nm): 460 Excitation filter (nm): 455-495 Dichroic mirror cut-off (nm): 500 Emission filter (nm): 510LP Name: Green LED emission (nm): 523 Excitation filter (nm): 510-550 Dichroic mirror cut-off (nm): 570 Emission filter (nm): 575LP
