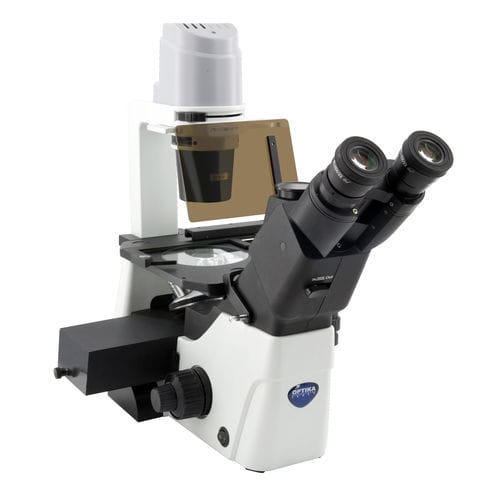

Optical microscope IM-300LD4

laboratoryfor researchtrinocular

Epi-illumination and filter: High -Power LED with brightness control. 4-position filter holder; none included. Interpupillary distance: Adjustable between 50 and 75 mm. Dioptric adjustment: On the left eyepiece tube. Eyepieces: WF10x/22 mm, high eye-point and with rubber cups. Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings. Objectives: IOS LWD U-PLAN F 10x/0.30 IOS LWD U-PLAN F 20x/0.45 IOS LWD U-PLAN F 40x/0.65 All with anti-fungus treatment. Specimen stage: Mechanical stage, 250×290 mm, with glass and metal stage inserts for slides and 54mm dia. Petri dishes. Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm. Transmitted illumination: X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. Multi-plug 100-240Vac/12Vdc external power supply. A new milestone achieved in Fluorescence Microscopy » Full-modular Fluorescence System » Interchangeable LED-Filtersets » 4 LED-Filtersets slots » 10% higher light intensity than HBO » 35% higher light intensity than Metal-Halide » Adjustable light intensity » The selection of filtersets automatically involves the switching on of the corresponding LEDs » Recommended for research applications » Cost-effective, money saving technology » Ready for immediate operation » Eliminate warm-up/cool-down times » Forget lamp replacement & centering
