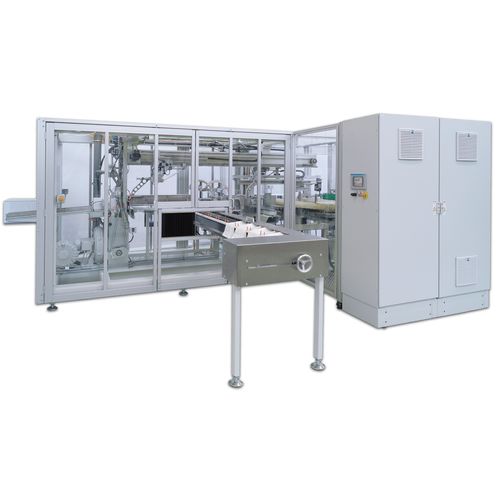

Automatic packaging machine OPTIMA DS1

semi-automaticfloor-standingconveyor

Flexibility to select different types of material supply The DS1 semi- or fully automatic packaging system permits entry into the fully automatic packaging of baby diapers at a low investment level. The fully automatic DS1 is available with bag maker or wicket conveyor. Fast return on investment due to low investment cost. The semi-automatic DS1, with three packing stations, can be expended to a fully automatic packaging system if needed. Infeed: - up to 500 Products/min Size range product (LxWxH): - min. 160 mm x 100 mm x 10 mm Size range product (LxWxH): - max. 280 mm x 160 mm x 22 mm Size range bag (LxWxH): - min. 160 mm x 100 mm x 100 mm Size range bag (LxWxH): - max. 560 mm x 420 mm x 160 mm Three semi-automatic packing stations (standard) Select the fully automatic version to handle roll material or pre-made bags Low investment costs Minimal space requirements Automatic synchronization with the production line
