Ophthalmology software module

angiographyvisualizationdiagnostic

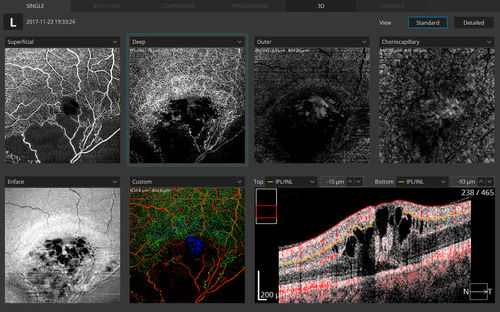

This non-invasive dye free technique allows the visualization of the microvasculature of the retina. Angiography OCT provides an alternative to the traditional fluorescein method. Although OCT-A will not completely replace FA imaging, it is a quick and non-invasive tool. The software allows clinicians to observe, track and compare changes in the microvasculature of the retina in both eyes. Quantification The quantification tool provides quantification of the vasculature in the whole analyzed area together with values in specific zones and sectors. Thanks to the heat map of the analyzed vasculature the evaluation of vascular structure conditions is much faster. The choice of the quantification method increases the sensitivity of analyses for specific deseases. Available quantification methods: Vessel Area Density – it is defined as the total area of perfused vasculature per unit area in a region of measurement. Skeleton Area Density – it is defined as the total area of skeletonized vasculature per unit area in a region of measurement. Quantification is available for a specific layer in Angio OCT exam: Retina: Superficial Plexus and Deep Plexus Disc: RPC – Radial Peripapillary Capillary FAZ FAZ – Foveal Avascular Zone measurements enable the quantification and monitoring of changes in Superficial and Deep vascular layers. The FAZ tool is also available for narrow and wide scans. VFA VFA – Vascular Flow Area allows the user to examine the pathologically affected area and to precisely measure the area covered by vascularization. The simple and easy area measurement can be performed on a predefined or user-selected vascular layer.
