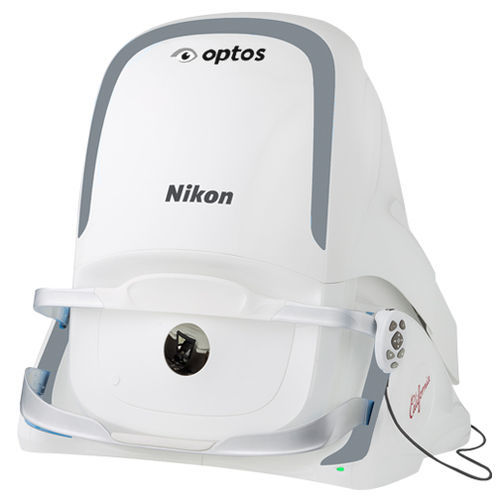

SLO ophthalmoscope California

tabletop

With California, Optos has incorporated new hardware and software technology enabling practitioners to see more, discover more, and effectively treat more ocular pathology thus promoting patient health. In addition to a field of view of 200 degrees or 82% of retina in a single image capture, California, offers the following benefits: Visibility of 50% more of the retina when compared to other conventional imaging devices Motorized head and chin rest to more easily align those patients who require additional assistance during imaging Multiple imaging modalities including 3-in-1 color depth imaging (color, red-free and choroidal in a single image) and autofluorescence Dye based imaging modalities fa and icg as well as interweaved angiography for parallel capture of fa and icg images without manually switching between imaging modalities Technical Specifications Image Modalities optomap color and optomap plus (red and green laser): Color composite Sensory Red-free Choroidal optomap af (green laser): autofluorescence optomap fa (blue laser): fluorescein angiography optomap icg (infra-red): indocyanine green angiography Resolution optomap color: 20 μm optomap plus, af, fa, icg: 14 μm Wavelengths Red laser: 635 nm Green laser: 532 nm Blue laser: 488 nm Infrared laser: 802 nm Exposure Time Less than 0.4 seconds Footprint Width: 550 mm / 22 inches Depth: 550 mm / 22 inches including chinrest Height: 608-632 mm / 24-25 inches Weight 34 kg/ 75 lbs Laser Class Laser safety Class-1 following IEC/EN60825-1:2007 and 21 CFR1040.10 and 1040.11 System Voltage US: 100-120V at 50/60Hz EU/AU: 200-240V at 50-60Hz
