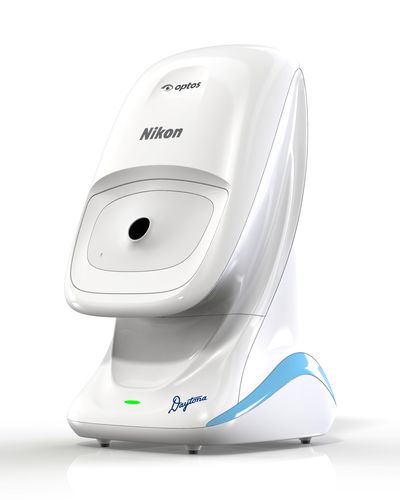

SLO ophthalmoscope Daytona

tabletop

Daytona provides eyecare professionals with UWF digital images of 200 degrees or up to 82% of the retina in a single, non-contact optomap image. In addition, the Daytona device comes with the OptosAdvance™ browser-based image review software, which allows for simple documentation, monitoring and referral processing to assist in patient management and improved patient flow. Image Modalities optomap color and optomap (red and green laser): Color composite view Green laser view Red laser view optomap af (green laser): Autofluorescence Resolution optomap color: 20 μm optomap af : 14 μm Wavelengths Red laser: 635 nm Green laser: 532 nm Exposure Time Less than 0.4 seconds Footprint Width: 440 mm/18 in Depth: 500 mm/20 in Height: 795 mm/32 in Weight 28 kg/62 lbs Table Space Requirements - Width: 700 mm/28 in Depth: 550 mm/22 in Colors White body with aqua trim White body with blue trim White body with silver trim White body with red trim Laser Class Laser safety class-1 following EN60825 System Voltage US: 100-120V at 50/60Hz 3a Power Consumption Max. 300VA
