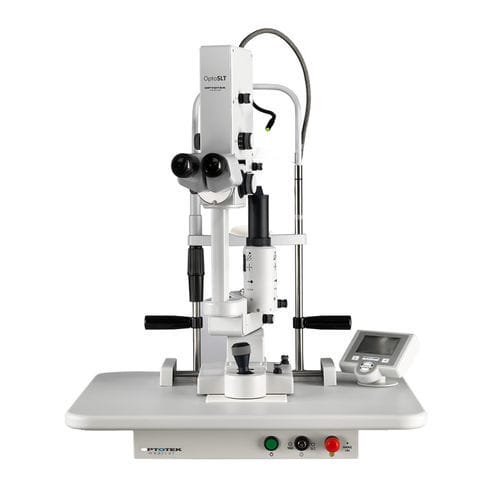

Trabeculoplasty laser OptoSLT M

Nd:YAGtabletopnanosecond

laser light stimulates the body’s own healing response to lower eye pressure effective as primary, adjunctive or repeat therapy safe, office-based procedure reimbursed by most insurance policies Key features Optotek has spent extra time and effort to ensure highest reliability and safety of the system. The OptoSLT M incorporates a PPS™ technology for delivering stable output energy far exceeding current industry standards. Enhanced accuracy and stability of energy provide the highest degree of safety and assure effective and efficient eye treatments. e-SlitLight™ HIGH POWER LED ILLUMINATION SYSTEM FES™ - Fine Energy Setting FOR UNMATCHED PRECISION PPS™ - Pulse to Pulse Stability FOR ADVANCED SAFETY Treatment at 3 Hz FOR HIGHER PERFORMANCE Easy-to-move System MECHANICAL PRECISION AND OPTICAL QUALITY Technical specifications: Laser Energy 0,2 to 2,6 mJ per pulse in 33 steps Spot Size 400 μm Cone Angle < 3° Pulse Rate - Up t 3 Hz Burst Mode Single pulse Pulse Duration 4 ns (typical) Aiming Beam Red diode; 650 nm; continuously adjustable intensity(635, 670 nm optionally) Laser Trigger Joystick (footswitch optionally) Cooling System - Air convection Slit Lamp Illumination Source White LED Magnification 10x, 16x, 25x (6x, 10x, 16x, 25x, 40x optionally) Table Type Central mounted Dimensions 600 x 480 mm System dimensions SLT Laser Head Dimensions 240 x 150 x 60 mm Total System Height 695 – 730 mm Electrical Requirements Power Supply 100 – 240 V, 50 – 60 Hz, 1,1 A MAX
