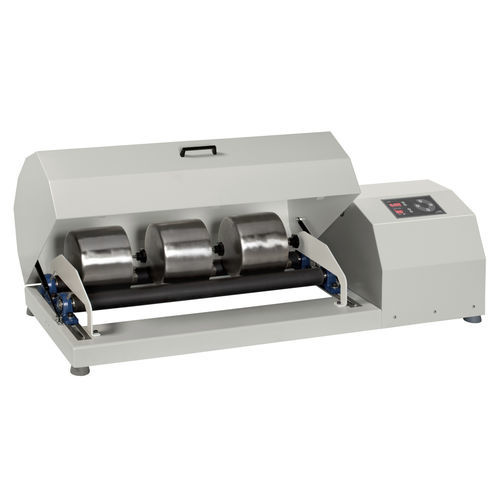

Ball bearing mill ML series

sampletabletop

The ball mill splits the sample by using repeated hits against the balls. It moves along an arc of a semi-circle due to the dragging of the pitcher in the cylinder motor. Isolated jars prevent the contamination of samples. Its function and design makes it suitable for mill works in laboratories of public works, manufacture of paints, ceramic, milling of raw materials for the manufacture of pharmaceutical and food products. Features High resistance cylinders: solid steel interiors and tough and flexible cover which enables the turn of the jars without damages. Metal cover which has been proved to have high resistance. Light button of on/off. Stop plate. Timer from 1 to 99 min., programmable in 1 min. steps or hold position. Easy to use Stop emergency button. Adjustable cylinders to adapt jars with different diameters. Useful length of the cylinders: 730mm Capacity: 1 jar of 15 liters, 2 jars of 5 liters, 3 jars of 3 liters, 4 jars of 1 liter. Jars available in alumina (92% purity) or stainless steel (AISI 304). It is controlled by a microprocessor. Drive roller speed can be regulated (between 50 and 300 RPM) or jar speed (depending on the diameter) Safety Electric: ground power and fuses. Main switch. Cylinders cover with window and interior lighting. Safety system in the cover: when it is open the cylinders stop moving.
