CO2 tester FLUGAS

compressed airmicrobial limitnitrogen

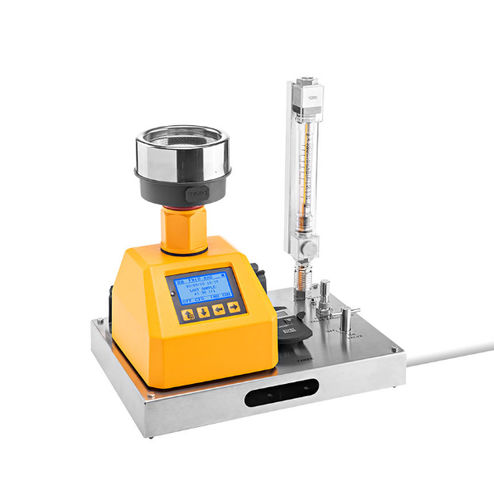

It is a microbiological sampler to test the quality of compressed air/Nitrogen/CO2 or other gas in Cleanroom The volume of aspirated air can be 100 or 200 lt/min The 100 l/m (or 200 l/m) flow rate is guaranteed by a flow regulator controlled by operator via a calibrated flow meter All components are autoclavable (with exception of flow meter and timer) The ASPI GAS chamber is included in the system The data is automatically recorded when the system is used with TRIO.BAS/AIRBIO air samplers. When used with aspirating gas chamber, the data is recorded manually Inlet gas pressure 1 - 10 BAR Description FLUGAS System consists of: stainless steel compact base; analogic calibrated vertical flow meter for compresed air and Nitrigen gas; stainless steel AISI 316; ASPIGAS chamber with Aspirating head; digital timer (7); gas input to be sampled The system is compliant with ISO Standard 8573-7 and ISO 14698. If the FLUGAS System is used in combination with ASPIGAS chamber, the test is manual and the time is calculated by a digital timer. If the FLUGAS System is used in combination with a TRIO.BAS or an AIRBIO ONE air sampler the whole cycle of the test is programmed automatically, controlled and recorded by the software of the device. The sampling data can be transferred via cable or Bluetooth to a PC with a dedicated software according to GMP and GPL. Technical data All the components of the FLUGAS System are autoclavable (excluding the vertical flow meter and timer) Input pressure: 1 ÷ 10 bar: air flow 100/200 lt/min (200 l/m optional)
