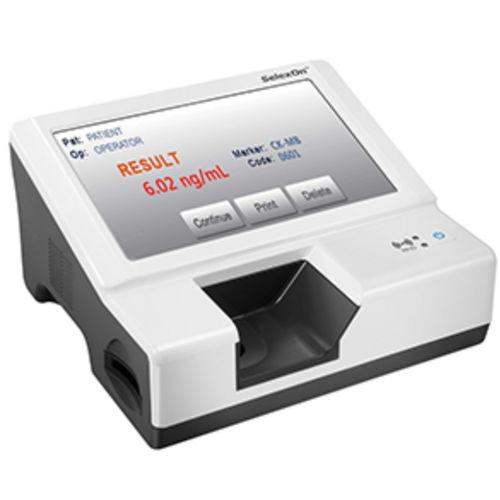

Cardiovascular disease POCT analyzer SelexOn

for infectious diseasesfor cancersfor thyroid diseases

A POCT immunosensor based on antigen-antibody reactions, ImmunoOnTM screens for disease and checks status by qualitatively and quantitatively measuring biomarkers in human blood. Features Measures over 30 kinds of biomarkers such as cardiac and thyroid disorders, cancer and infectious diseases Measures by qualitative and quantitative method Convenient addition of new markers by RFID (Expandability) Fast processing under Quick Test mode Self-developed biomarkers Specification Sample Type - Venous Whole Blood Sample Volume - 5~250㎕ (Refer to strip manual) Strip Storage Temperature - 2℃~30℃ Measuring Range - Refer to strip manual Display Type - LCD Measuring Time - Quantitative method: 10min Qualitative method: 20min Humidity - 10~85% Analyzer Size / Weight - 168×190×95 mm / 0.8Kg Analyzer Storage Temperature - 10℃~35℃ Analyzer Operating Temperature - 18℃~32℃ Memory - 1000 tests Voltage / Current - DC 9V / 3A Communication Port - Thermal Printer Barcode Scanner Battery (8.4V / 4400mAh) Data Cable
