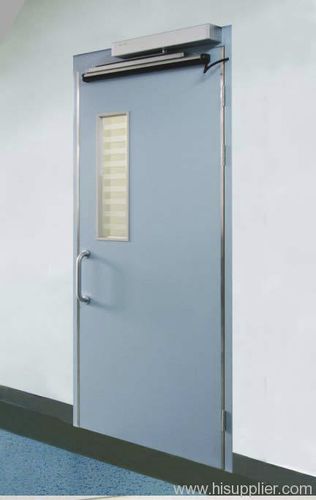

Hospital door PDM-1

swingstainless steelaluminum

Both Sliding arm type and articulated arm type are available. Operating system adopts microcomputer chip to intelligently control the door and the open angle could be adjusted at any position. The operator is directly mounted onto the wall, easy and fast for installation. A variety control modes can be adopted, such as infrared sensors, foot sensors, key card readers, etc. Door plate is made of high-intensity aluminium alloy structure and high quality environmental filling material. Along the door frames and the bottom there are rubber seal strips working together to well meet the sanitary requirements of hospitals, nurse stations and clean workshops, etc Opening Angle - 00~1100 Door Weight - Max 150KG Power Supply - AC220V±10%,50~60Hz Opening Time (900) - 2s~4s Closing Time(900) - 2s~4s Opening Delay Time - 1~20s (Adjustable) Manual Open Force - <30N Power Consumption - <50W Working Temperature - -20℃~+50℃
