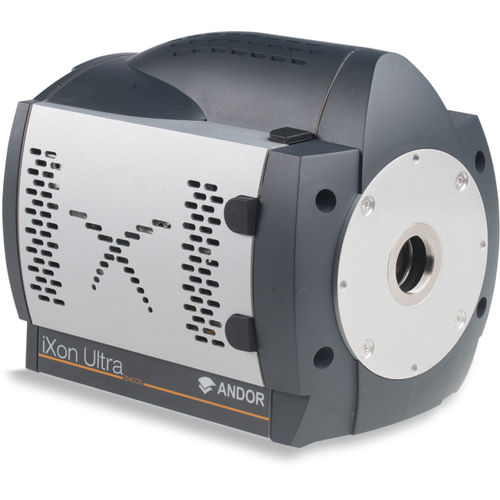

Microscope camera iXon Ultra 897

digitalEMCCDcooled

The iXon Ultra platform takes the popular back-illuminated 512 x 512 frame transfer sensor and overclocks readout to 17 MHz, pushing speed performance to an outstanding 56 fps (full frame), whilst maintaining single photon sensitivity and quantitative stability throughout. Overclocked to 17 MHz readout for 56 fps full frame Optically Centered Crop Mode – Live Cell Super Resolution at 569fps Single Photon Sensitive EX2 Technology for wider QE response TE Cooling to -100 °C Fringe Suppression Overview Facilitated by a fundamental redesign, the iXon Ultra platform takes the popular back-illuminated 512 x 512 frame transfer sensor and overclocks readout to 17 MHz, pushing speed performance to an outstanding 56 fps (full frame), whilst maintaining quantitative stability throughout. Ultimate Sensitivity is attained through deep thermoelectric cooling down to -100°C and industry-lowest clock induced charge noise. Additional unique features of the iXon Ultra 897 include USB 2.0 connectivity and direct raw data access for on the fly processing. EMCCD and conventional CCD readout modes provide heightened application flexibility, with a new ‘low and slow’ noise performance in CCD mode. Features Overclocked to 17 MHz readout - Pushes frames to 56 fps (full frame); 595 fps with 128 x 128 cropped sensor mode. Optically Centred Crop Mode - Continuous imaging with fastest possible frame rate from centrally positioned ROIs. Highly enabling for live cell super-resolution and much more (e.g. 569 fps with 128 x 128 ROI). EX2 Technology - Extended QE response, beyond standard back-illuminated. TE cooling to -100°C - Critical for elimination of darkcurrent detection limit.
