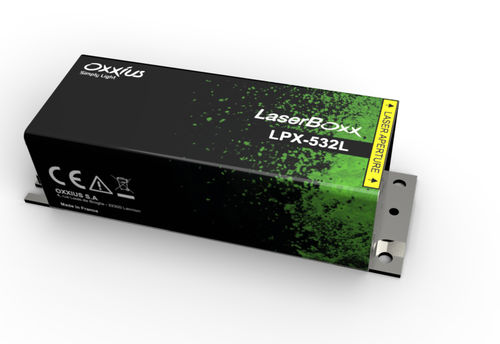

Medical laser module LPX-532L

for microscopes

The LPX-532L LaserBoxx are diode-pumped solid-state laser sources. The unique feature of these models is a proprietary, Alignement-free Monolhitic Resonator (AMR). This technology yields to highly efficient pump schemes and allows for the highest spectral quality on the market. The LPX-532L is insentive to temperature variations and to mechnical vibrations. LPX-532L is compatible in the L4Cc Combiner and L6Cc Combiner . It provides with : Integrated control electronics SM/PM/MM fiber coupling options USB and RS232 interfaces Dedicated control software External controller with power display (Plug&Play versions, CDRH-compliant) Options Fiber coupling Fiber coupling options offer rugged and compact solutions to couple LaserBoxx into polarization maintaining fiber, standard single mode fiber or multimode fiber. Electro-Mechanical shutter The ACX-SHTE is a compact and affordable electro-mechanical shutter. It is mounted directly on the LCX or LPX in place of the standard manual shutter. The fiber coupling and other options are fully compatible with the electro mechnical shutter. The ACX-SHTE is actuated via the LCX or LPX embedded software or via a standard TTL signal. Power 500 mW
