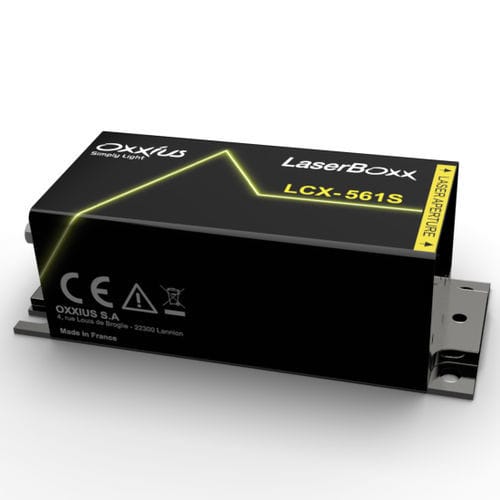

Laser module LCX-561S series

– Up to 500 mW – Exceptional wavelength stability – 1pm – Lowest power consumption ≤ 12 W for LCX’s & LPX’s, any wavelength, less than 200 mW ≤ 15 W for LCX-532 & LCX-1064, 500 mW ≤ 15 W for LCX-561 300 mW – Low profile laser head (32 mm) – Tailored beam diameter capability (0.6 up to 1.4 mm) VBG stabilized Laser Diode modules benefits – Proprietary SLM locking routine – Enhanced beam quality versions Options Fiber coupling Fiber coupling options offer rugged and compact solutions to couple LaserBoxx into polarization maintaining fiber, standard single mode fiber or multimode fiber. Electro-Mechanical shutter The ACX-SHTE is a compact and affordable electro-mechanical shutter. It is mounted directly on the LCX or LPX in place of the standard manual shutter. The fiber coupling and other options are fully compatible with the electro mechnical shutter. The ACX-SHTE is actuated via the LCX or LPX embedded software or via a standard TTL signal. Power 50 mW 100 mW 200 mW
