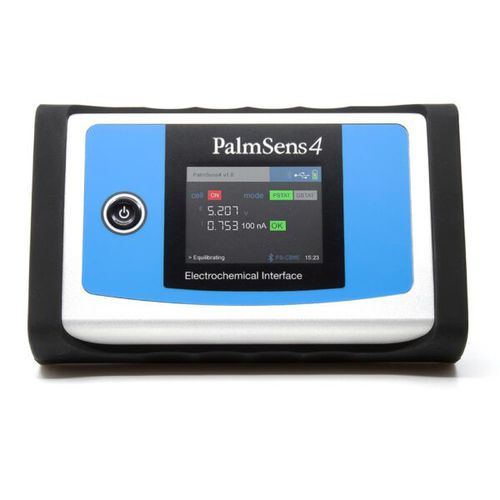

Research potentiostat PS4.F#.05

single-channelUSB

Galvanostat / Impedance Analyzer FRA / EIS: 10 μHz up to 1 MHz 9 current ranges: 100 pA to 10 mA 18-bit resolution Description Our flagship instrument, the PalmSens4, is a USB and battery powered Potentiostat, Galvanostat, and optional a Frequency Response Analyser (FRA) for Electrochemical Impedance Spectroscopy (EIS). The PalmSens4 has a large potential range (-5V to 5V or -10V to 10V) and current range (100 pA to 10 mA) with a high resolution and low noise. The economical PalmSens4 is a complete laboratory instrument but its compact and rugged design makes it also ideal for field work. Connecting via Bluetooth guarantees a perfectly floating measurement. Configurable PalmSens4 comes in different configurations: EIS/FRA with maximum frequency of 100 kHz or 1 MHz optional BiPotentiostat module for second WE optional iR-Compensation Standard included Rugged carrying case High quality, double shielded cell cable with 2 mm banana connectors for Working, Counter, Reference electrode and Ground Crocodile clips Dummy cell USB cable Manual and Quick Start document PSTrace software for Windows Techniques Voltammetric techniques Linear Sweep Voltammetry (LSV) Cyclic Voltammetry (CV) Fast Cyclic Voltammetry (FCV) AC Voltammetry (ACV) Pulsed techniques Differential Pulse Voltammetry (DPV) Square Wave Voltammetry (SWV) Normal Pulse Voltammetry (NPV) Amperometric techniques Chronoamperometry (CA) Zero Resistance Amperometry (ZRA) Chronocoulometry (CC) MultiStep Amperometry (MA) Fast Amperometry (FAM) Pulsed Amperometric Detection (PAD) Multiple-Pulse Amperometric Detection (MPAD) Other Mixed Mode (MM)
