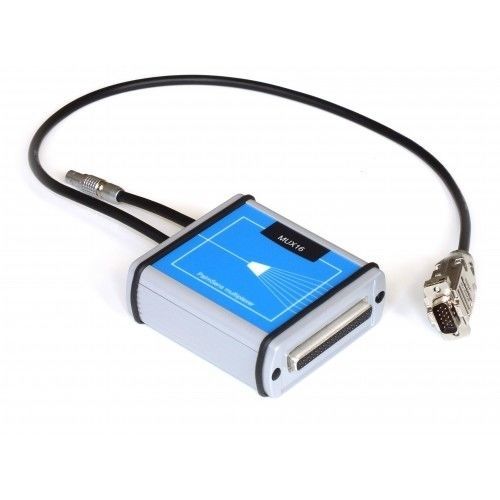

Laboratory monitoring system MUX16

Automatically switch between electrochemical cells 3 different electrode or sensor configurations Switches up to 16 working electrodes, CE and RE are not switched Description This multiplexer allows the usage of a single PalmSens or EmStat Blue with up to 16 electrochemical cells, by switching between the different cells. A great way to raise efficiency. A single PalmSens or EmStat Blue can be used to work with multiple working electrodes or a sensor array by means of a multiplexer. The multiplexer switches between their working electrodes in the range of milliseconds. There are two versions of the multiplexer available. MUX8 multiplexer: enables to work with up to eight 2- or 3- electrode systems. MUX16 multiplexer: enables to work with up to sixteen 2- electrode systems. The 16 working electrodes can have a shared counter and reference electrode, or each working electrode is matched with its own combined reference/counter electrode. If only the working electrodes are switching, one reference and one counter electrode shared by all working electrodes is a possible configuration. Specifications System number of channels - 2-16 multiplexer - 16 x WE only, CE and RE are not switched on resistance for WE - 2 ohm typical charge injection on WE - 1 pC typical leakage current - 10 pA typical at 25 ºC Other housing - aluminium: 89 mm x 35 mm x 85 mm weight - +/- 300 g power supply - 5V from PalmSens communication - DSub-15 cable to PalmSens and standard PalmSens electrode cable
