Magnetic stirrer

for researchbenchtop

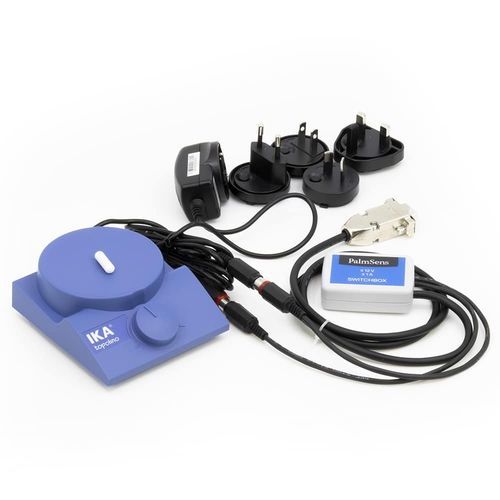

Connects to your potentiostat Controlled via PSTrace Can be used in scripts Description Extremely convenient magnetic mini-stirrer for mixing quantities up to 250 ml. This stirrer comes with a switch box for your PalmSens enabling your potentiostat to control the stirrer. The stirrer is automatically used during the depositing phase or for example switched on or off by using a script in the scripting window for a user defined time during the measurement. Durable, brushless motor Infinitely variable speed range High magnetic adhesion Specifications Compatible with PalmSens3, PalmSens4, EmStat 3 Blue Number of stirring positions 1 Stirring quantity max. per stirring position (H2O) [l]: 0.25 Motor rating output [W]: 0.8 Speed control: stepless Stirring bar length max. [mm]: 30 Set-up plate material synthetic: (PP) Set-up plate dimensions [mm] Ø: 80 Dimensions (W x H x D) [mm]: 95 x 37 x 115 Weight [kg]: 0.484 Permissible relative humidity [: 80 Protection class according to DIN EN 60529 IP 21 Voltage [V]: 100 – 240 Frequency [Hz]: 50/60 Power input [W]: 10
