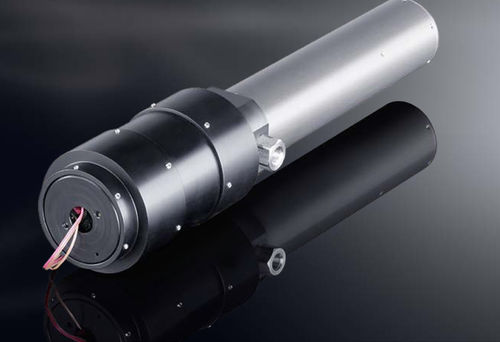

Flow sensor SLS-25/25

laboratory

The Scattered Light Sensor for contamination analysis of particle sizes down to 0.5 µm according to ISO 21501-2 or down to 1.5 µm(c) according to ISO 11171 Application: Optical particle measurement of small particle sizes in liquids via light scattering method: for filter test rigs (e.g. integrated in particle counter PAMAS 4132) for laboratory analyses of very small particle sizes in clean liquids or in oil (e.g. integrated in PAMAS SVSS or PAMAS SBSS) for field analyses with portable particle counters in the rugged case PAMAS GO (e.g. PAMAS S4031 GO) For the analysis of submicron particles, PAMAS has developed the Scattered Light Sensor PAMAS SLS-25/25. Contrary to sensors working in light extinction technology, this sensor is able to detect particle sizes down to 0.5 microns. Due to this high sensitivity, the PAMAS SLS25/25 is used for laboratory analysis of submicron particles in ultraclean liquids and in hydraulic or lubricating oil, as well as for f ilter test rigs. Furthermore, the Scattered Light Sensor may also be integrated in portable measuring instruments (in the rugged case PAMAS GO) enabling the particle analysis in the field. Liquid Particle Sensor using Light Scattering Technology for the analysis of submicron particle sizes As all other PAMAS sensors, the PAMAS SLS-25/25 is based on a volumetric sample cell which offers highest precision by measuring 100% of the sample volume. Since volumetric sensor technology counts each single particle, PAMAS sensors are able to measure ultraclean liquids down to class 000 (SAE AS 4059) or class 0/0/0 (ISO 4406).
