Animal research operant conditioning system LE116

for ratsfor micestartle reflex

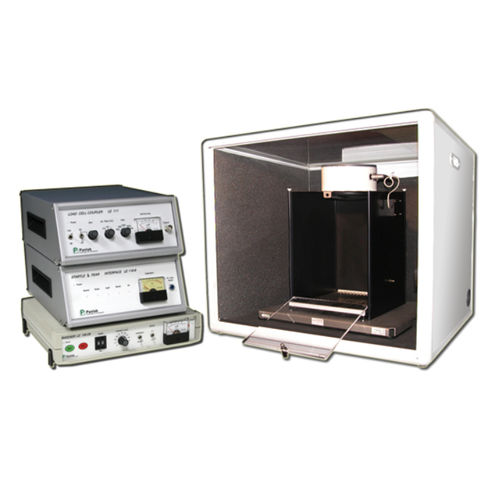

The StartFear Combined system is a polyvalent system for conducting both fear conditioning and startle reflex experiments in one same enclosure, regardless the animal is a rat or a mouse (from 15grs to 300 grs. or more depending on the use or not of a restrainer). Basically, the StartFear system allows recording and analysis of the signal generated by the animal movement through a high sensitivity Weight Transducer system. The analogical signal is transmitted to the FREEZING and STARTLE software modules through the load cell unit for recording purposes and posterior analysis in terms of activity/immobility (FREEZING) or startle response characterization (STARTLE). An additional interface associated with corresponding hardware allows controlling the stimuli (light, sounds, shock, air puff) from the STARTLE and FREEZING modules of the PACKWIN software (PACKWINCSST and PACKWINCSFR, respectively). The StartFear cage is made with black methacrylate walls and a transparent front door. In fear conditioning experiment, the walls, cover and floor can be of different materials or colours. Moreover, a transparent cylinder can be placed into the experimental chamber in order to modify the contextual spatial perception of the subject during the test phase. Combined system for startle/freezing Combined system for rats/mice Weight transducer sensitivity optimized for mice Easily removable tray Different spacial context configurations available for fear conditioning paradigms Accurate and traceable data One same enclosure for both rat and mouse No PCI cards required (USB connection)
