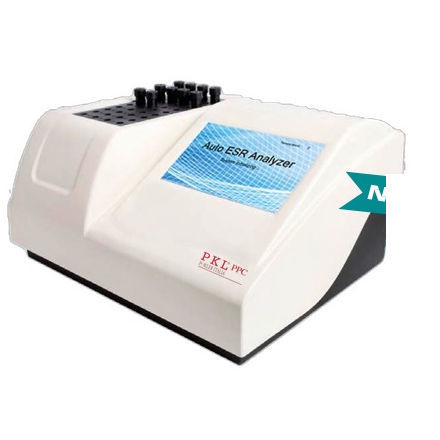

Automatic ESR analyzer PKL PPC 840

for clinical diagnostic

Large color display, touch screen 40 channels, up to 80T/H Two working method: 30 mins or 60 mins ESR curve display and print out Barcode reader optional Can connect LIS Specifications: Field of application - Erythrocyte sedimentation rate analysis Measuring principle - Infrared sensor Analysis result Westergren ESR value (mm/hr) Throughput Up to 80 samples per hour Reading channels 40 Loading capacity - 40 sample at same time Loading pattern Random Measuring time - 30 minutes or 60 minutes selectable Sample interval - 3 minutes Measurement range (1-140)mm/h Temperature compensation - Refer to 18°C automatically (selectable) Reading resolution - ±0.1mm Result resolution - 1mm/1h, 1mm/2h Blood level range - 50mm~64mm Display - Color LCD screen Input - Touch screen Interface - RS-232 serial port Print - Internal thermal recorder Storage - 4,000 results Power supply - AC100-240V, 50-60Hz, 50W Operation conditions - Temperature 5C°~40°C Humidity ≤80% Dimension - 365mm × 300mm × 180mm (L×W×H) Net weight - 11Kg
