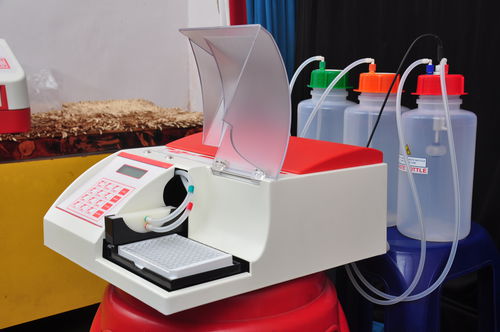

Automatic microplate washer PKL PPC 240

laboratoryfor ELISAprogrammable

Compatible with U, V, or flat-bottom plates Up to 100 wash protocols programmable Minimal residual volume 8-way and 12-way wash heads interchangeable Unattached absorbing head and dispensing head Positive displacement pump with low noise Overfill washing and overflow protection Automatic waste liquid warning Incubator for 2 microplates Description Features: • Specially designed Manifold assembly to prevent any scratching on bottom of well • Auto rinse facility while shut down • Ability to wash single strip of 8 wells • User programmable soak time, wash cycles and dispensing volume • On Board two plate incubator at 37°C with programmable timer • Waste bottle full warning with audible alarm • Continuous aspiration to prevent overflow • Removable manifold • Cross wash/sweep wash facility • Built-in stabilizer • Auto detection of bottom of well and collision prevention TECHNICAL SPECIFICATIONS: • Manifold: 8 Way Manifold autoclavable • Dispensing: Programmble up to 3000 μl Aspirating: • Method: Continuous through diaphgram pump while dispensing hence preventing overflow • Residual Volume: <2 μl • Waste Bottle: One (Capacity 2 litres) with audible alarm • Wash Bottle: One (Capacity 2 litres) • Display: 16 digit alphanumeric fluorescent • Liquid contact materials: Silicon, Stainless Steel, Derline • Memory: 100 open Channels • Washing Method: Plate Wash, Strip Wash,Bottom Wash, Overflow Wash, Rinsing,Priming, Disinfect • Shaking: Multi Step shaking • Incubator: Fot Two ELISA Plates, 37°C • Timer: Individually Programmable 2 Nos. • Power: 50 Watts/115 – 240Volts ± 10%, 50/60 Hz • Weight: 6 Kgs.
