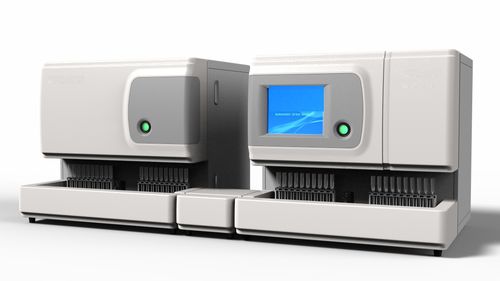

Automatic urine analyzer PKL PPC 330 + 360

for clinical diagnosticbenchtopwith touch screen

• Fully automatic Urinalysis Workstation, providing optimized workflow,maximizing work efficiency. • Full-closed hydrolic system, eliminating contamination. • Providing comprehensive data for diagnosis. • Offering a report that integrates the results of urine chemistry and urine sediment automatically, minimizing the manual work. • STAT function for both urine chemistry and urine sediment. • Huge storage of data, the storage can up to be 50,000 results with images,with powerful data management. SPECIFICATIONS:Parameters: Glucose, Protein, Blood, Bilirubin, pH,Ketone, Ascorbic Acid, Urobilinogen,Nitrite, Leucocytes, Special Gravity,Creatinine, Microalbumin, Calcium,MA/CR, Color, Turbidity Wavelength: 5 LED wavelengths (430, 500, 565, 635, 760nm) Test Strip: Dual-wavelength reflectance photometry Specific gravity,color, turbidity: Physical Determinations Throughput: 300 samples/hour Required Urine Volume: 2.0ml,3.0 ml for online mode Memory: Up to 4GB (up to 300000 results) Display: Large color touch LCD (8 inch) Maximal Racks: 110 samples, 10 samples × 11 racks Strip Capacity: 400 strips Printer: Internal thermal printer external printer is optional Interface: RS-232, LPT, LAN, USB,PS/2 Dimension: 630mm × 626mm × 570mm (L × W × H) Weight: 55 kg Power: AC 100V~240V, 50/60Hz, 250VA Fully Automatic Stable Operating System:- Linux OS Structural Design:- Simplified valve system to reduce fluid circuit complications and integrated pump for easy maintenance Advanced Analysis Component:- New CIS detection technology for faster and more accurate sample analysis
