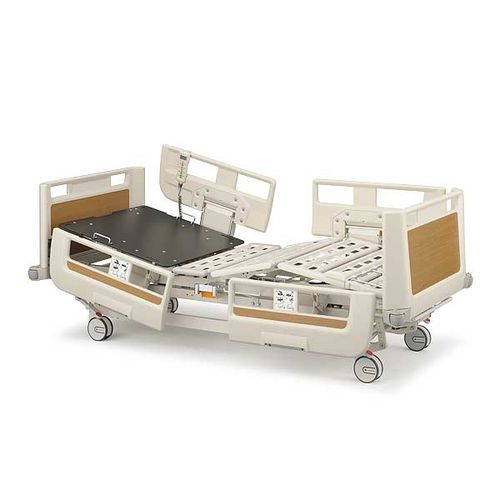

Intensive care bed KA-66000 Series

electricheight-adjustableTrendelenburg

PRODUCT FEATURES X-ray Imaging X-ray imaging using the cassette based system can be allowed taking x-ray imaging. KIND Motion By using the “KIND motion” function, body slippage is reduced and the posture during back raise can be firmly maintained via a combination of back and knee movements. Back Raise Position During back rest elevation, the back of the frame is extended to accommodate the natural lengthening of the body as the patient's back is raised. This movement prevents the patient from sliding down the mattress toward the foot of the bed. SPECIFICATIONS Angle Back Raise (degree) 0 to 75 Knee Raise (degree) 0 to 40 Trendelenburg / Reverse Trendelenburg (degree) -12 to 12 Dimension Total Length (mm) 2,135 *1 Dimension Total Width (mm) 1,010 Mattress Base Height (mm) 450 to 750 Safe Working Load Safe Working Load (kgf) 215 (2,100N)
