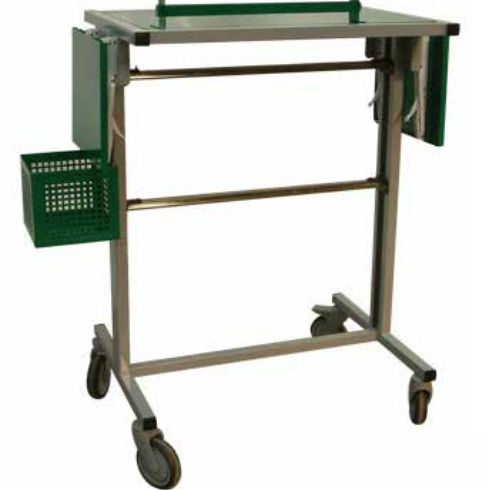

Developed from a backbone which tolerate 1 to 2 rails. Modular and adaptable dimensions according to file sizes,
in A4/A3+ on 2 levels.
Weight 17 to 20kg
Overall dimensions H.1155 to 1539 x L.854 x P.512
Frame Electro-galvanized steel sheet 20/10e mm - Steel tube 30x30x1.5
Writting shelf Electro-galvanized steel sheet 10/10th
MODULARITY The frame is modular and could be configured in A4 / A3 or A3 2 levels.The dimensions are
adaptable depending on the files format, users need and locals constraints.
Number of levels 1 to 3
Suspension rail 1 to 2
Formats A3 / A4 •
CAPACITY
Dimensions rails 616/726/956/1066
Documents formats A4/A4+ à A3/A3+
MANOEUVRABILITY
Wheels
Swivels Ø125mm of which 1 with brake and 1 with directional lock, Polyamide cover - Swivel
on double ball bearing - Wires bumper - Axis wheels on precision ball bearings
Polypropylene wheel body
Non marking gray thermoplastic tyres
PERSONALIZATION High durability epoxy paint, tints according to color chart
