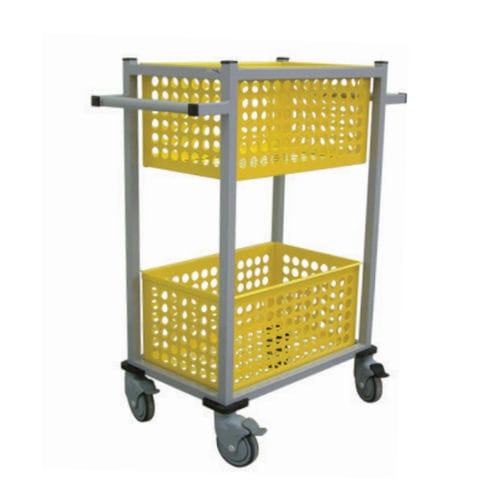

Developed from a backbone which tolerate 1 to 3 movable baskets. Basket dimensions are modular according to
format files: A5 to A3+.
Weights 25 kg
Overall dimensions H.1050 à 1200 x L.534 to 978 x P.420 à 680
Frame Electro-galvanized steel sheet 20/10e mm - steel tube 30x30x1.5
Baslets Steel sheet corrosion resistant 10 and 20/10th
MODULARITY
Number of levels 2 levels
Perforing in baskets With or without perforation
CAPACITY
Useful interior dimensions per
level H.150 or 300 x L.534 x P.400 à 536
Documents formats A4 to A3+
MANIABILITY
Wheels
4 casters entirely disassembled of which 2 swivels. 1 with brake and 1 to directional lock
-Polyamide cover - caster on double ball bearing - Wires bumper -
Axis wheels on precision ball bearings - Polypropylene wheel body
Non marking gray thermoplastic tyres
PERSONNALIZATION Epoxy paint high resistant , 17 tints according to color chart, threatment following external need
Frame
Electro-galvanized steel sheet : 10 and 20/10th and steel tube 30 x 30 x 1,5mm and 30 x 1,5mm
Gray epoxy coating n°1
Baskets
Electro-galvanized steel sheet : 10 and 20/10th or steel wire electroplated coatings
Corrosion resistant
High durability epoxy paint according to color chart- 17 standard tints available
