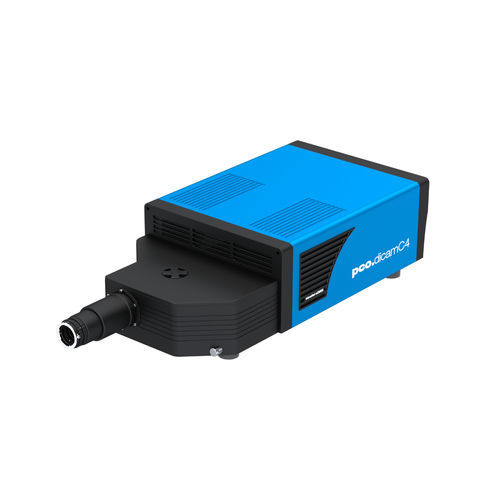

Medical camera module pco.dicam C4 UHS

digitalsCMOS

Four ultra-fast 18 mm high-quality image intensifiers in a fully integrated 4-channel sCMOS camera: The pco.dicam C4 UHS equally distributes the incident light from a single optical input to the 4 individual channels. Each of them can detect single photons with 2.5 ns shortest exposure time and up to 143 fps at full 2.3 MPixel resolution. With the pco.dicam C4 UHS ultra-speed camera system you make full use of the unique intensified 16 bit sCMOS capabilities. Its high-end tandem lens systems ensure you an efficient and lossless capture of the output from the 18 mm image intensifiers, completely free of artifacts. The 4 x 10G fiber optic data interface (Camera Link HS) guarantees you uncompressed and robust data transfer up to 2.6 GByte/s. With the latest standard of high-performance data interfaces, you can bridge long distances via fiber optic cable. Forward Error Correction algorithms assure a maximum of data integrity. Key Features 4-channel intensified sCMOS camera exposure times down to 2.5 ns 4 images in 10 ns, 8 images in 580 ns 16 bit dynamic range 1504 x 1504 pixels optical coupling via ultra-speed tandem lenses enhanced extinction ratio gating 18 mm image intensifier 45 ns trigger to exposure start delay up to 2.6 GByte/s with 4 x 10G fiber optic data interface (Camera Link HS)
