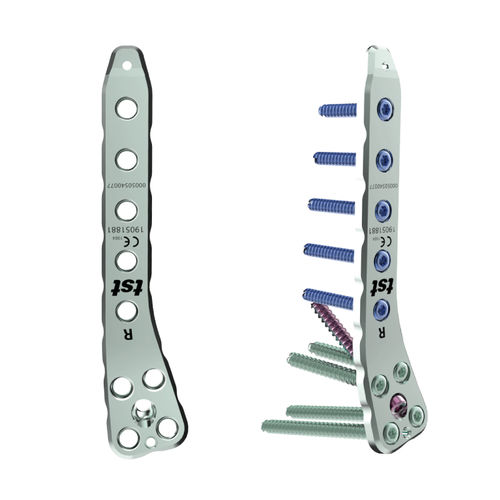

Femur osteotomy plate 3161 series
distallockingstainless steel

Femur osteotomy plate - 3161 series - Peditst - distal / locking / stainless steel
Femur osteotomy plate - 3161 series - Peditst - distal / locking / stainless steel
Femur osteotomy plate - 3161 series - Peditst - distal / locking / stainless steel - image - 2
Femur osteotomy plate - 3161 series - Peditst - distal / locking / stainless steel - image - 3
Femur osteotomy plate - 3161 series - Peditst - distal / locking / stainless steel - image - 4
Femur osteotomy plate - 3161 series - Peditst - distal / locking / stainless steel - image - 5
Femur osteotomy plate - 3161 series - Peditst - distal / locking / stainless steel - image - 6
Add to favorites
Compare this product


Characteristics

Applications
femur
Part of bone
distal
Locking
locking
Materials
stainless steel
Patient type
pediatric
Length

75 mm, 87 mm, 89 mm
(3 in, 3.4 in, 3.5 in)

Thickness

3.5 mm
(0.1 in)

Description

The Distal Femur Osteotomy Plate System is developed for the pediatric age group that provides a safe bone fixation and treatment of distal femoral osteotomies. Features The plate maintains the physiological angle between the femoral shaft and the knee joint. The non-offset design allows fracture treatments and osteotomies. With the help of the locking holes on the plate, the screws can be advanced parallelly and at an angle to the growth plate in the distal femur. Indications The Distal Femur Osteotomy Plates are used in children up to the age of 9 for; Distal Femur derotations and varus osteotomies, Fixed flexion contracture of the knee in neurological conditions, Deformity correction in the distal femur, Supracondylar fractures of the femur
