Medical gas plant control system

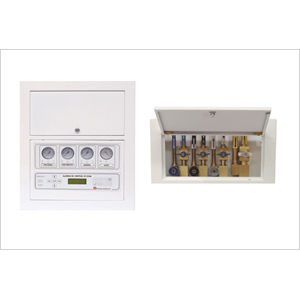

CONTROL AND ALARM BOXES Medical gas control and alarm box designed and manufactured by PEGISDAN at its headquarters in Madrid (Spain) according to UNE-EN-ISO 7396-1 / 10524 and NFPA-99-2015. Departmental The control box designed by PEGISDAN is divided into two zones, the upper one dedicated to the control with shut-off valves and safety shots and the lower one dedicated to the alarm panel. Without welding Due to the modular design of the control top, no leaks occur as all joints are sealed with o-rings avoiding any type of welding. Flexible and effective In the lower part we find the sensor doors where the alarm systems agreed with the customer are coupled and whose replacement can be done without interrupting the supply. Interconnection Through a CAN bus network, the control and alarm box is linked to decompressors and second reduction boxes to control the entire installation from a central computer.
