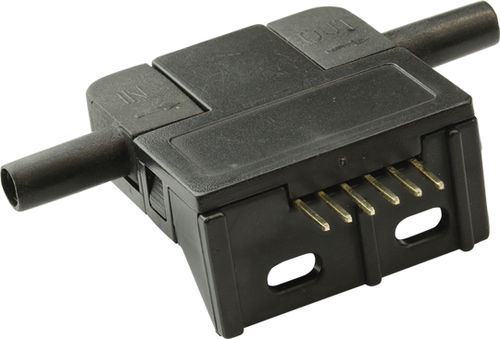

Temperature sensor PFLOW10U-2210

pressurehumiditymedical

Measuring range [SCCM] 0...10 Accuracy [± % FS] max. 2.5 Humidity range 0...100% RH, resistant to water condensation Supplier Pewatron Output signal Linear, 1...5 VDC Supply voltage [VDC] 8...14 Wetted materials Silicon carbide, epoxy, PPS, FR4, silicone as static seal Description The PFLOW series of mass airflow sen-sors incorporate the latest MEMS and microelectronics innovations. The sensor die uses a pair of thermopiles to detect changes in temperature gradient caused by mass flow, delivering ultra-low noiseto-signal, and unsurpassed repeatability. The “solid state” thermal isolation on the sensor die eliminates the need for surface cavities or fragile membranes, used in competing solutions, making the sensor resistant to clogging and pressure shock. The sensor’s internal signal conditioning circuitry leverages an off-the-shelf microcontroller, providing proven reliability and low cost. The PFLOW series of mass airflow sensors covers the ranges from 10 sccm to 2000 sccm. The sensors are fully calibrated and compensated over the tempera-ture range of 0 to 50 °C (32 to 122 °F). The linearized analog output (1 to 5 V) provides customers with maximum flexibility and ease-of-use.
