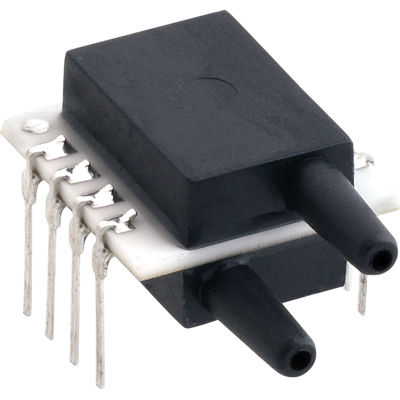

Temperature sensor CCD54

pressuremedical

Measuring range 0 to 2.5 mbar...10 bar Output type Analogue, Digital Temp. range [C -20 to +85 Mounting style SMD, THT Supplier Pewatron Pressure type Gauge, vacuum, differential, absolute Supply voltage [V] 3, 5 Temperature compensation Yes Pressure port Side port, dual port FEATURES DIP or SMD Package Calibrated Span and Offset Multi-order Temperature compensation Multi choice of output 3V or 5V Supply Customized Configuration upon request DESCRIPTION The Series CCD Model 54A is a smart pressure transducer with ratiometric analog output. Digital compensation of sensor offset, sensitivity, temperature drift and nonlinearity is accomplished in factory via an internal DSP running a correction algorithm with calibration coefficients stored in on-chip EEPROM. A variety of characteristic configuration, including accuracy, sampling rate, temperature compensated range are available to provide simple and ready-to-use solution for a wide rage of application. It can be operated in supply voltage of 3V or 5V, and can be extended to 30V with an external JFET. The Series CCD 54A is available for pressure range from 0.15 psi to 150 psi. Special configuration as low as 2.5 mbar is also applicable.
