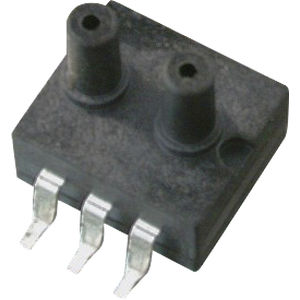

Temperature sensor SLP35

pressuremedical

Measuring range 0 to 0.02...2 bar Output type Analogue Temp. range [C -20 to +85 Mounting style SMD Supplier Pewatron Pressure type Gauge, vacuum, differential Supply voltage [V] 2.7...5.5 Temperature compensation Yes Pressure port Axial port, dual port FEATURES Easy Design-in Temperature Compensated Calibrated & Amplified Output Low Cost DESCRIPTION The SLP2 Series Model 35A incorporates a piezoresistive pressure sensor and signal conditioning ASIC in 6-pin DIL plastic housing for easy through board assembling. It provides low cost way to use temperature compensated and span calibrated pressure transducer for high volume application at affordable cost. Pressure ranges from 0.15 to 100 psig. Ratiometric output at 5V excitation is 0.5 to 4.5 V. Custom output can be ordered upon request. Pressure connection can be done through Tygon tube on the pressure port. The Series SLP2 is also available for digital output version. Please refer to data sheet of 35D for detail.
