Pressure transmitter PAMS3011 - PAMS3012

TEMP

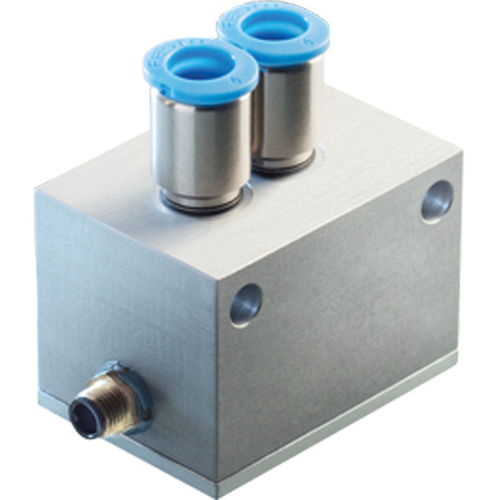

Measuring range 0 to 25 mbar...10 bar Supply voltage 8...36 VDC Accuracy [ 0.5 FS Supplier Pewatron Pressure type Gauge, vacuum, absolute Output signal 4...20 mA; 0...10 VDC, 0...5 VDC Temp. range [°C] -25 to 85 Product description PAMS3011 is a series of robust pressure transmitters in a matchbox-sized IP67 metal package. This series is suitable for high precision measurements in industrial indoor and outdoor applications as well as in medical instrumentation. FEATURES  Amplified pressure sensor with standardized 0 .. 5 V output  Calibrated and temperature compensated  Wide variety of pressure ranges: 25 mbar up to 10 bar  Differential / gage, bidirectional differential, absolute and barometric versions  Piezoresistive sensing element  High precision digital signal conditioning  High accuracy at room temperature  Low overall error within a temperature range of -25 .. +85 °C  Supply voltage range: 8 .. 36 V  Robust and miniaturized metal package  Pressure connection: M5 female thread  Electrical connection: M5 sensor connector  Simple and quick installation  Dust- and water-tight (IP67)  RoHS and REACH compliant
