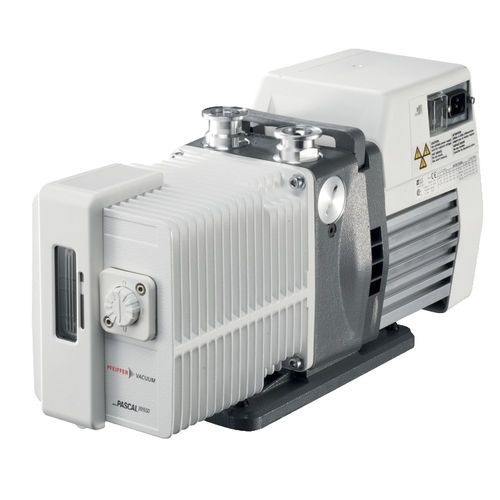

Laboratory vacuum pump Pascal 2005 SD series

rotary vanelubricated

Very low ultimate pressure, ideal for medium vacuum applications Single-phase universal motor available, allowing an almost worldwide network coverage Adjustable inlet and outlet ports in horizontal or vertical orientation for better integration Pascal 2005, SD Version, 1-Phase Motor, 180–254 V, 50/60 Hz, CE/UL/CSA Order number: 205SDMHEM Flange (in) DN 25 ISO-KF Flange (out) DN 25 ISO-KF Pumping speed at 50 Hz 5 m³/h | 2.94 cfm | 83.33 l/min Pumping speed at 60 Hz 6 m³/h | 3.53 cfm | 100 l/min Ultimate pressure 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Ultimate pressure with gas ballast 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2 mbar Ultimate pressure without gas ballast 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Motor version 1-ph motor Mains requirement: voltage 50 Hz 180 – 254 V Mains requirement: voltage 60 Hz 180 – 254 V Mains cable Yes, EU power cable Operating fluid Mineral oil Rated power 50 Hz 0.45 kW Rated power 60 Hz 0.55 kW Protection category IP43 Weight 25 kg | 55.12 lb Pascal 2005, SD Version, 1-Phase Motor, 90–132 V, 50 Hz/60 Hz, CE/UL/CSA Order number: 205SDMLAM Flange (in) DN 25 ISO-KF Flange (out) DN 25 ISO-KF Pumping speed at 50 Hz 5 m³/h | 2.94 cfm | 83.33 l/min Pumping speed at 60 Hz 6 m³/h | 3.53 cfm | 100 l/min Ultimate pressure 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Ultimate pressure with gas ballast 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2 mbar Ultimate pressure without gas ballast 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Motor version 1-ph motor Mains requirement: voltage 50 Hz 90 – 132 V Mains requirement: voltage 60 Hz 90 – 132 V Mains cable Yes, US power cable
