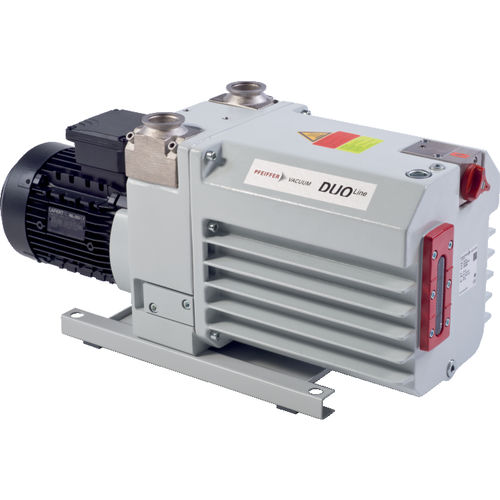

Laboratory vacuum pump Duo 65/M seriesrotary vanehigh-performancelubricated
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory
- Technology
- rotary vane
- Options
- high-performance, lubricated
- Flow
Min.: 62 m³/h
(2,189.51 ft³/h)Max.: 70 m³/h
(2,472.03 ft³/h)- Power
Min.: 1.5 kW
(2.04 hp)Max.: 1.8 kW
(2.45 hp)- Pressure
Min.: 0 bar
(0 psi)Max.: 0 bar
(0 psi)
Description
Rugged design for demanding industrial applications
Highest availability thanks to long maintenance intervals
Flexible use due to extensive accessories program
Adjustable inlet and outlet ports in horizontal or vertical orientation for better integration
Optionally with magnetic coupling
Duo 65, 3-phase motor, PTC, 230/400 V, 50 Hz | 265/460 V, 60 Hz
Order number: PK D46 602
Dual-stage, high-performance rotary vane pump with a pumping speed up to 70 m3/h
With 3-phase motor
With temperature sensor (PTC) for optimum motor protection
Integrated gas ballast and HV safety valve
For all low and medium vacuum applications
Special feature: Various motor voltages for worldwide employment
Duo 65, Rotary Vane Pump, 220/380 V, 60 Hz, 3TF
Order number: PK D46 642
Dual-stage, high-performance rotary vane pump with a pumping speed up to 70 m3/h
With 3-phase motor
With temperature sensor (3TF) for optimum motor protection
Integrated gas ballast and HV safety valve
For all low and medium vacuum applications
Special feature: Various motor voltages for worldwide employment
