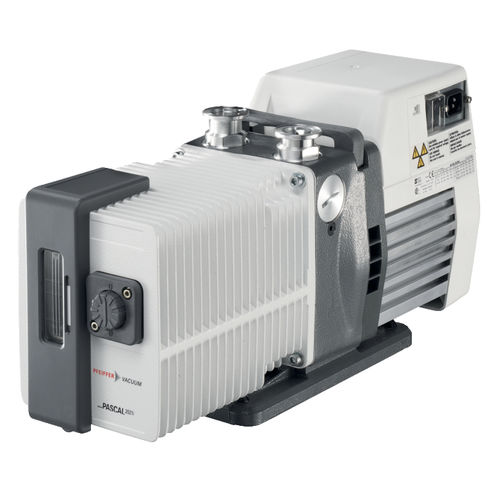

Laboratory vacuum pump Pascal 2021 I series
rotary vanelubricated

laboratory vacuum pump
laboratory vacuum pump
Add to favorites
Compare this product


Characteristics

Applications
laboratory
Technology
rotary vane
Options
lubricated
Flow

Max.: 22 m³/h
(776.92 ft³/h)

Min.: 18 m³/h
(635.66 ft³/h)

Power

Max.: 0.66 kW
(0.9 hp)

Min.: 0.45 kW
(0.61 hp)

Pressure

Max.: 0.01 mbar
(0 psi)

Min.: 0 mbar
(0 psi)

Description

With pressure oil lubrication, ideal for applications with high gas throughput in analytics and industry Extremely low noise, ideal for laboratory applications Single-phase universal motor available, allowing an almost worldwide network coverage Adjustable inlet and outlet ports in horizontal or vertical orientation for better integration Pascal 2021, I Version, 1-Phase Motor, 180–254 V, 50/60 Hz, CE/UL/CSA Order number: 221AEMHEM Flange (in) DN 25 ISO-KF Flange (out) DN 25 ISO-KF Pumping speed at 50 Hz 18 m³/h | 10.59 cfm | 300 l/min Pumping speed at 60 Hz 22 m³/h | 12.95 cfm | 366.67 l/min Ultimate pressure 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Ultimate pressure with gas ballast 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2 mbar Ultimate pressure without gas ballast 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Motor version 1-ph motor Mains requirement: voltage 50 Hz 180 – 254 V Mains requirement: voltage 60 Hz 180 – 254 V Mains cable Yes, EU power cable Operating fluid Mineral oil Rated power 50 Hz 0.45 kW Rated power 60 Hz 0.55 kW Protection category IP43 Weight 28 kg | 61.73 lb Pascal 2021, I version, 1-phase motor, 90–132 V, 50 Hz/60 Hz, CE/UL/CSA Order number: 221AEMLAM Flange (in) DN 25 ISO-KF Flange (out) DN 25 ISO-KF Pumping speed at 50 Hz 18 m³/h | 10.59 cfm | 300 l/min Pumping speed at 60 Hz 22 m³/h | 12.95 cfm | 366.67 l/min Ultimate pressure 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Ultimate pressure with gas ballast 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2 mbar Ultimate pressure without gas ballast 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Motor version 1-ph motor
