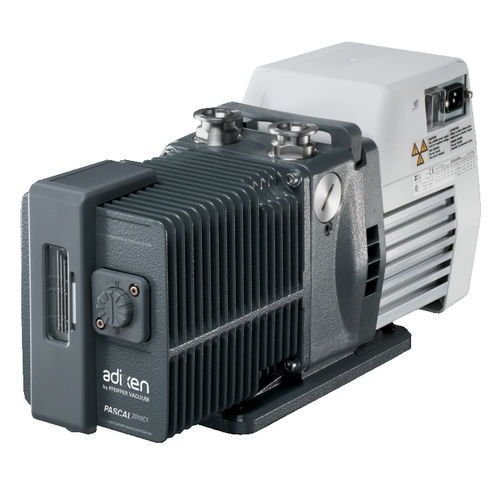

Laboratory vacuum pump Pascal 2015 C1 series

rotary vane

Increased resistance thanks to special materials Very low ultimate pressure, ideal for medium vacuum applications Low operating costs through the use of mineral oil Single-phase universal motor available, allowing an almost worldwide network coverage Adjustable inlet and outlet ports in horizontal or vertical orientation for better integration Pascal 2015, C1 Version, 1-Phase Motor, 180–254 V, 50/60 Hz, CE/UL/CSA Order number: 215C1MHEM Flange (in) DN 25 ISO-KF Flange (out) DN 25 ISO-KF Pumping speed at 50 Hz 14 m³/h | 8.24 cfm | 233.33 l/min Pumping speed at 60 Hz 16.5 m³/h | 9.71 cfm | 275 l/min Ultimate pressure 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Ultimate pressure with gas ballast 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2 mbar Ultimate pressure without gas ballast 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Motor version 1-ph motor Mains requirement: voltage 50 Hz 180 – 254 V Mains requirement: voltage 60 Hz 180 – 254 V Mains cable Yes, EU power cable Corrosive gas version YES Operating fluid Mineral oil Rated power 50 Hz 0.45 kW Rated power 60 Hz 0.55 kW Protection category IP43 Weight 27 kg | 59.52 lb Pascal 2015, C1 version, 1-phase motor, 90–132 V, 50 Hz/60 Hz, CE/UL/CSA Order number: 215C1MLAM Flange (in) DN 25 ISO-KF Flange (out) DN 25 ISO-KF Pumping speed at 50 Hz 14 m³/h | 8.24 cfm | 233.33 l/min Pumping speed at 60 Hz 16.5 m³/h | 9.71 cfm | 275 l/min Ultimate pressure 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Ultimate pressure with gas ballast 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2 mbar Ultimate pressure without gas ballast 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Motor version 1-ph motor
