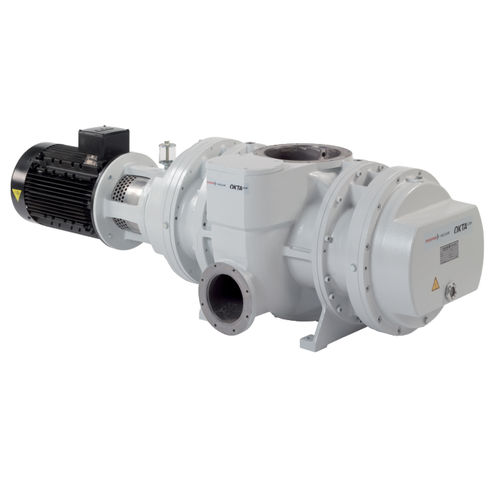

Laboratory vacuum pump Okta 6000 series

Roots

Roots pump with a pumping speed of 3,240 to 9,730 m3/h: Product description Highest compression value of all vendors Integrated overflow valve No cooling water consumption Okta 6000, Roots pump, 400/690 V, 50 Hz | 460 V, 60 Hz Order number: PP W76 000 High-performance Roots pump with a pumping speed of 3240 to 9730 m3/h For mains voltage: 400 V, 50 Hz respectively 460 V, 60 Hz No thermal overload thanks to integral overflow valve For applications in the low and medium vacuum With IE3 motor Technical data Ambient temperature 5-40 °C | 41-104 °F | 278-313 K Cooling method, standard Air Differential pressure at the overflow valve 20 hPa | 15 Torr | 20 mbar Differential pressure max. 20 hPa Dimensions (L x W x H) 1,867 x 655 x 560 mm | 73.5 x 25.79 x 22.05 inch Emission sound pressure level (EN ISO 2151) at intake pressure 10 hPa 79 dB(A) Emission sound pressure level (EN ISO 2151) at intake pressure 1 hPa 74 dB(A) Flange (in) DN 250 ISO-F/DN 250 PN 16 Okta 6000, Roots pump without motor Order number: PP W76 001 High-performance Roots pump with a pumping speed of 3240 to 9730 m3/h Without motor (coupling and motor lantern are included in delivery) No thermal overload thanks to integral overflow valve For applications in the low and medium vacuum Okta 6000 M, Roots Pump, 400/690 V, 50 Hz | 460 V, 60 Hz Order number: PP W77 000 High-performance Roots pump with a pumping speed of 3240 to 9730 m3/h and magnetic coupling For mains voltage: 400 V, 50 Hz respectively 460 V, 60 Hz No thermal overload thanks to integral overflow valve For applications in the low and medium vacuum With IE3 motor
