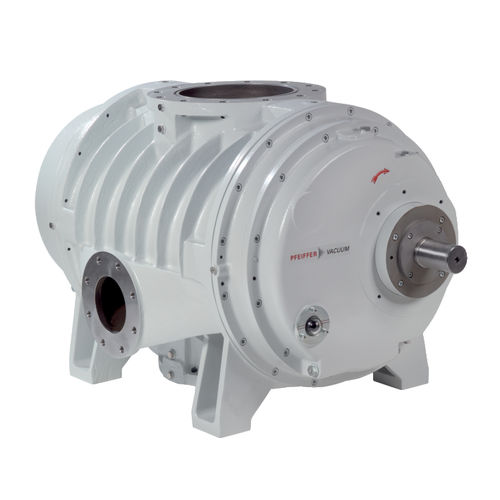

Laboratory vacuum pump Okta 8000 G

Rootshigh-performancegas-cooled

Gas-cooled Roots pump with a pumping speed range from 4.000 to 12.000 m3/h Product description Unsurpassed high pressure difference Highest compression value Integrated cooling gas flanges Okta 8000 G, gas-cooled Roots pump without motor, DN 300 PN 10 Order number: PP G80 001 High-performance gas cooled roots pump with a pumping speed from 4000 to 12000 m3/h For applications in the low and medium vacuum Single stage pressure range from 130 to 1013 hPa, in series with smaller final pressure Connection flange DN 300 PN 10 No thermal overload thanks to gas cooling With sealing gas connection Customized design and offer for motor, gas cooler, and coupling on request Technical data Ambient temperature 5-40 °C | 41-104 °F | 278-313 K Cooling gas connection DN 150 PN 10 Cooling method, standard Gas-cooled Flange (in) DN 300 PN 10 Flange (out) DN 300 PN 10 Leak rate 1 · 10-3 Pa m3/s | 7.5 · 10-3 Torr l/s | 1 · 10-2 mbar l/s Motor rating max. 200 kW Noise level with connected exhaust line 75 – 105 dB (A) Nominal pumping speed 4,000-12,000 m³/h | 2,354.4-7,063.2 cfm | 66,666.67-200,000 l/min Nominal pumping speed at 50 Hz 8,000 m³/h | 4,708.8 cfm | 133,333.33 l/min Nominal pumping speed at 60 Hz 9,600 m³/h | 5,650.56 cfm | 160,000 l/min Nominal pumping speed max. 12,000 m³/h | 7,063.2 cfm | 200,000 l/min Nominal pumping speed min. 4,000 m³/h | 2,354.4 cfm | 66,666.67 l/min Nominal rotation speed at 50 Hz 1,500 rpm | 1,500 min-1 Nominal rotation speed at 60 Hz 1,800 rpm | 1,800 min-1 Operating fluid P3 Operating fluid filling 21 l Protection category IP55 Rotation speed 750-2,250 rpm | 750-2,250 min-1 Sealing gas true
