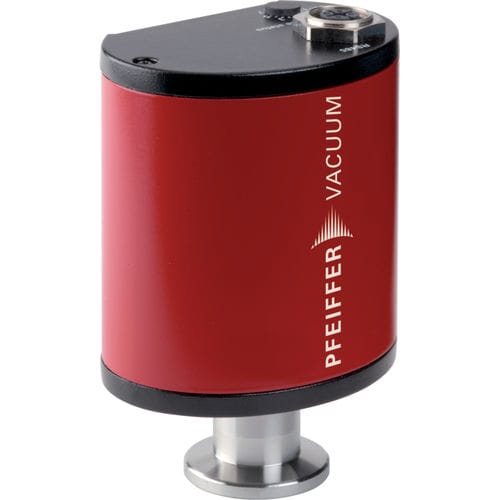

Digital vacuum gauge DigiLine RPT 200 series

laboratory

Piezo/Pirani combination RPT 200 (1 · 10-4 – 1200 hPa) The RPT 200 gauge affords accurate measurements from high vacuum to atmospheric pressure and above. With its rugged metallic case and digital interface it is particularly suited for operation in vacuum and other systems. Product description For accurate gas-type independent pressure measurement of venting procedures Measurement range from 1 · 10-4 – 1200 hPa Gas type independent measurement for pressure >10 hPa RPT 200, DN 16 ISO-KF; RS-485 Order number: PT R37 130 1 · 10-4 to 1200 hPa Combination of two sensors High accuracy up to atmospheric pressure Technical data Accuracy: 2 · 10-3 – 10 hPa ± 10 % Accuracy (Full Scale): 10 – 1200 hPa ± 0.3 % Ambient temperature 5-60 °C | 41-140 °F | 278-333 K Bakeout temperature at the flange 125 °C | 257 °F | 398 K Filament Tungsten Full scale 1,200 hPa | 900 Torr | 1,200 mbar I/O interfaces RS-485 Materials in contact with media Stainless steel, Tungsten, gold, silicon oxide, glass Measurement range 1 · 10-4 – 1.2 · 103 hPa Measuring cycle 10 ms Method of measurement Piezo/Pirani Nominal diameter DN 16 ISO-KF Pressure max. 4,000 hPa | 3,000 Torr | 4,000 mbar Protection category IP54 Repeatability: 1 · 10-3 – 1 hPa ± 1 % Repeatability (Full Scale): 10 – 1200 hPa ± 0.1 % Seal Metal Sensor cable length min. 100 m Supply: power consumption 2.5 W Supply: Power consumption max. 2.5 W Temperature: Storage -40-65 °C | -40-149 °F | 233-338 K Weight 195 g RPT 200, DN 16 ISO-KF, RS-485, Analog Order number: PT R37 131 1 · 10-4 to 1200 hPa Combination of two sensors High accuracy up to atmospheric pressure Analog output and set points
