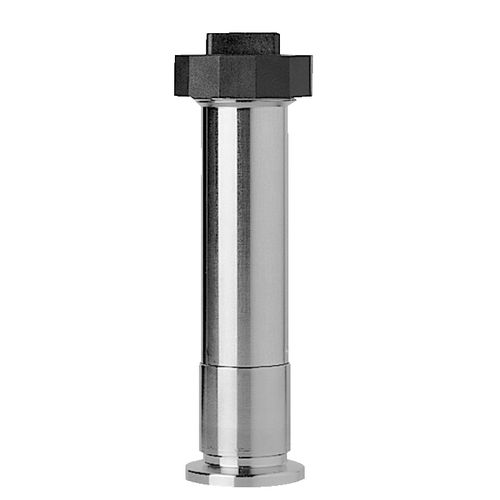

Vacuum gauge ActiveLine APR series

Product description Pressure measurement independent of type of gas Corrosion-resistant Measurement range up to four decades APR 250, DN 16 ISO-KF, 2 % F.S. Order number: P 5215 102 TF Flange size: DN 16 ISO-KF Measurement range from 0.1 hPa to 1100 hPa Maximum pressure applies to inert gases and temperatures of less than 55 °C Technical data Accuracy (Full Scale) 2 % Bakeout temperature 80 °C Full scale 1,000 hPa | 750 Torr | 1,000 mbar Linearity and hysteresis (Full Scale) ≤ 0.5 % Material Stainless Steel Measurement range 1 · 10-1 – 1.1 · 103 hPa Nominal diameter DN 16 ISO-KF Output signal: Measurement range 1 – 9.8 V Output signal: Minimum load 10 kΩ Pressure max. 3,000 hPa | 2,250 Torr | 3,000 mbar Protection category IP65 Sensor cable length min. 50 m Stability of sensitivity (Year) ≤ 0.5 % Supply: Power consumption max. ≤ 0.2 W Supply: Voltage V DC 13 – 30 V DC Temperature: Operating 10-80 °C | 50-176 °F | 283-353 K Temperature: Storage -40-80 °C | -40-176 °F | 233-353 K Thermal sensitivity drift ≤ 0.5 % Thermal zero drift (Full Scale) ≤ 0.5 % Volume 2 cm³ Weight 120 g Zero stability (Full Scale | Year) 0.5 % APR 260, DN 16 ISO-KF, 1 % F.S. Order number: P 5215 112 TF Flange size: DN 16 ISO-KF Measurement range from 0.1 hPa to 1100 hPa Maximum pressure applies to inert gases and temperatures of less than 55 °C Technical data Accuracy (Full Scale) 1 % Bakeout temperature 80 °C Full scale 1,000 hPa | 750 Torr | 1,000 mbar Linearity and hysteresis (Full Scale) ≤ 0.2 % Material Stainless Steel Measurement range 1 · 10-1 – 1.1 · 103 hPa Nominal diameter DN 16 ISO-KF Output signal: Measurement range 1 – 9.8 V
