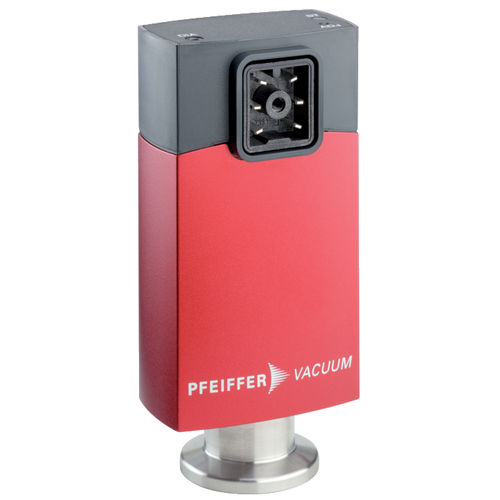

Vacuum gauge ActiveLine PCR series

Pirani/Capacitance gauges PCR Product description For accurate gas-type independent pressure measurement of venting procedures Display range 5 · 10-5 to 1500 hPa Two sensors in one gauge head (Pirani and capacitance diaphragm) PCR 280, 80 °C, DN 16 ISO-KF Order number: PT R26 855 Metal-sealed Bakeout temperature: 80 °C Technical data Accuracy: 1 · 10-3 – 100 hPa ± 15 % Accuracy: 100 – 950 hPa ± 5 % Accuracy: 5 · 10-4 – 1 · 10-3 hPa ± 50 % Accuracy: 950 – 1050 hPa ± 2.5 % Ambient temperature 10-50 °C | 50-122 °F | 283-323 K Bakeout temperature 80 °C Feature Stainless steel, metal sealed Feedthrough Glass Filament Tungsten Flange, Material Stainless steel Measurement range 5 · 10-5 – 1.5 · 103 hPa Nominal diameter DN 16 ISO-KF Output signal: Measurement range 1.2 – 8.68 V Output signal: Minimum load 10 kΩ Pressure max. 5,000 hPa | 3,750 Torr | 5,000 mbar Repeatability: 1 · 10-3 – 1100 hPa ± 2 % Seal Metal Sensor cable length min. 100 m Supply: Power consumption max. 2.5 W Supply: Voltage V DC 15 – 30 V DC Temperature: Storage -20-65 °C | -4-149 °F | 253-338 K Volume 4.7 cm³ Weight 120 g PCR 280, 80 °C, DN 16 CF-F Order number: PT R26 856 Metal-sealed Bakeout temperature: 80 °C Output signal: 1,2 – 8,68 V logarithm of pressure Voltage supply: 15 – 30 V DC Technical data Accuracy: 1 · 10-3 – 100 hPa ± 15 % Accuracy: 100 – 950 hPa ± 5 % Accuracy: 5 · 10-4 – 1 · 10-3 hPa ± 50 % Accuracy: 950 – 1050 hPa ± 2.5 % Ambient temperature 10-50 °C | 50-122 °F | 283-323 K Bakeout temperature 80 °C Feature Stainless steel, metal sealed Feedthrough Glass Filament Tungsten Flange, Material Stainless steel
