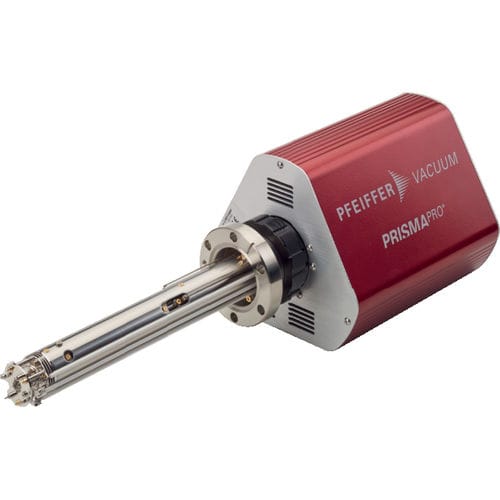

Mass spectrometer PrismaPro® QMG 250 F1 series
for residual gas analysistungstencompact

mass spectrometer
mass spectrometer
Add to favorites
Compare this product


Characteristics

Type
mass
Applications
for residual gas analysis
Source
tungsten
Configuration
compact

Description

This modularly designed compact mass spectrometer can be optimally adapted to your application Product description PrismaPro® compact mass spectrometer PV MassSpec software for Windows 10, 8.1 & 7 for recording, saving and displaying measured data Leak detection and vacuum diagnosis with a click Easy definition of measurement recipes Low detection limit Ethernet networking PrismaPro® QMG 250 F1, 1–100 u, open ion source, Tungsten, I/O-option: Standard Order number: PT M15 111 210 PV MassSpec software for Windows 10, 8.1 & 7 for recording, saving and displaying measured data Leak detection and vacuum diagnosis with a click Easy definition of measurement recipes Low detection limit Technical data Ambient temperature: analyzer 200 °C | 392 °F | 473 K Bakeout temperature: analyzer 300 °C | 572 °F | 573 K Connection 0° Contribution to neighboring mass: 40 to 41 10 ppm Detection limit 4 · 10-13 hPa | 3 · 10-13 Torr | 4 · 10-13 mbar Detector Faraday Filament Tungsten Flange (in) DN 40 CF-F I/O interfaces Ethernet Input: Analog 1x ± 10 V / 12 Bit Input: Digital 2x, 24 V Ion source Open, 2 filaments Mass range 1 – 100 u Mounting orientation Any Operating pressure max. 5E-4 hPa Peak ratio reproducibility 0.5 % Relay: Number 1 Pcs. Resolution, adjustable at 10 % peak height 0.5 – 2.5 u Rod system: Diameter 6 mm | 0.24 inch Rod system: Length 125 mm | 4.92 inch Scan speed 1 ms/u - 16 s/u Sensitivity for Ar 5 · 10-4 A/hPa Supply: Voltage V AC 100 – 240 V AC Temperature: Storage -25-70 °C | -13-158 °F | 248-343 K Weight 2.5 kg | 5.51 lb
