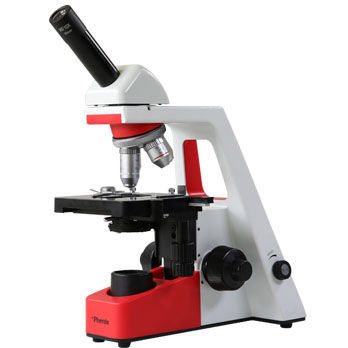

Optical microscope H200

digitallaboratorybiological

H200 series biological microscope adopts ergonomic design, unique shape, light structure, and built-in handle for easy access and movement. It is a cost-effective microscope that can be used for teaching and research in biology, bacteriology, etc. in schools and laboratories. ● Eyepiece -WF10X/18mm, WF16X/15mm, WF20X (optional) ● Achromatic objective -4X, 10X, 40X (spring), 100X (spring, oil) ● Double-layer mechanical stage -120X115mm，76X40mm ● Coaxial coarse and fine focusing, tightness adjustable -Coarse adjustment stroke: 22mm, fine adjustment accuracy: 0.002mm ● Lighting systemReflector (as an accessory) -LED 1W, non-rechargeable, adjustable brightness ● Dimming system -Digital circuit, precise stepless dimming, no screen flicker ● Power supply -LED external switching power supply, input AC90V-240V, output DC 5V/2A Observation tube -Monocular tube, 45°inclined, 360° rotatable -Compensation binocular tube, 30°inclined, 360° rotatable, interpupillary distance: 48-75mm -Compensation trinocular tube, 30°inclined, 360° rotatable, interpupillary distance: 48-75mm Eyepiece -WF10X/18mm Nosepiece -Four Holes Nosepiece Stage -Double-layer mechanical stage, automatic refocusing, 120X115mm, stroke 76x40mm (Abbe condenser, lifting ring up and down) Focusing mechanism -Coaxial coarse and fine adjustment, elasticity adjustable, coarse focusing range 28mm, fine focusing graduation: 0.002mm Condenser -Abbe condenser, NA=1.25, iris diaphragm, center adjustable,lifting ring up and down Collecting mirror -Critical illumination Bottom light -Reflector (as an accessory)
