Optical microscope XTL-165 series
laboratorytrinocularbenchtop

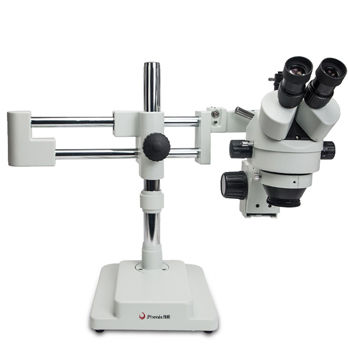

Optical microscope - XTL-165 series - Phenix Optics Co., Ltd. - laboratory / trinocular / benchtop
Optical microscope - XTL-165 series - Phenix Optics Co., Ltd. - laboratory / trinocular / benchtop
Optical microscope - XTL-165 series - Phenix Optics Co., Ltd. - laboratory / trinocular / benchtop - image - 2
Optical microscope - XTL-165 series - Phenix Optics Co., Ltd. - laboratory / trinocular / benchtop - image - 3
Optical microscope - XTL-165 series - Phenix Optics Co., Ltd. - laboratory / trinocular / benchtop - image - 4
Optical microscope - XTL-165 series - Phenix Optics Co., Ltd. - laboratory / trinocular / benchtop - image - 5
Optical microscope - XTL-165 series - Phenix Optics Co., Ltd. - laboratory / trinocular / benchtop - image - 6
Add to favorites
Compare this product


Characteristics

Type
optical
Applications
laboratory
Microscope head
trinocular
Configuration
benchtop
Light source
LED
Options and accessories
with LCD screen, USB, zoom
Other characteristics
with high-eyepoint eyepieces
Magnification

Min.: 7 unit

Max.: 320 unit

Height

368 mm
(14.5 in)

Description

XTL-165-XTWZ zoom stereo microscope, zoom ratio 1:6.5, has long working distance, large depth of field; equipped with universal double boom stand, which can observe the objects in any direction,expand the observation range. There are various optional accessories to fully meet the needs of different users. The products are mostly used in electronic detecting and jewelry detecting and so on. Optional accessories: ● HD digital camera , 2.0-20.0 million pixels optional ● LCD tablet (Windows/Android system), suitable for trinocular microscope ● LED ring light, brightness adjustable Zoom ratio -1:6.5 Viewing tube -Compensation binocular head, 45°inclined, interpupillary distance 55-75mm Eyepiece -High eye-point, wide field, WF10X/Φ20mm Diopter -Binocular diopter adjustment range ±6 Field of view -Φ5mm-Φ30mm Working distance -30-160mm Base stand -Universal bracket, cast iron base, wear-resistant stainless steel column, cross bar, cross bar with micro carving. Used in conjunction with the lifting group (focusing bracket), you can observe objects in any direction and expand the scope of observation. Base size -210mm X 260mm Column height -368mm Column diameter -31.8mm Matching aperture of column -31.8mm Horizontal size -510mm Optional -HD digital camera (2.0-20.0 million pixels) -LCD tablet (Windows/Android system), suitable for trinocular microscope
