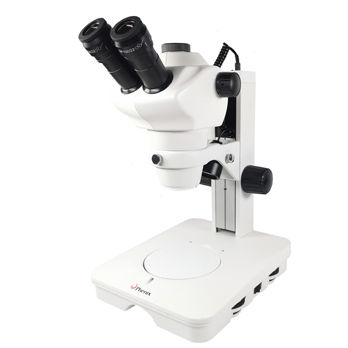

Optical microscope XTL-168 series

laboratorybinocularbenchtop

XTL-168 zoom stereo microscope, adopting a unified standard design of the connecting tube. The new design improves the image quality of the third tube. The magnification of the connecting tube can be selected according to the size of the applied camera chip. also can expand the magnification range through auxiliary eyepiece and objective lens. ● High eye-point, large field of view eyepiece WF10X/Φ22mm ● Continuous zoom hand wheel, zoom ratio 1:6.3, clear imaging ● Hand wheel lifting, adjusting working distance ● Unified standard connection tube, convenient for camera connection Zoom ratio -Continuous zoom ratio 1:6.3 Viewing tube -Binocular viewing head, interpupillary distance 52-75mm -Trinocular viewing head, interpupillary distance 52-75mm, With standard camera interface Eyepiece -Wide field WF10X/F.N.22mm, High eye-point Large field Diopter -Binocular diopter adjustment range±6 Field of view -Φ5-Φ30mm Working distance -45mm-220mm Focusing system -Vertical arm type coaxial coarse and fine adjustment , focusing range 60mm; bracket & stand integrated, focusing bracket diameter: 76mm Oblique light source -3W High-brightness LED light source, brightness adjustable , illumination angle adjustable Transmitted bottom light -3W high-brightness LED light source, brightness adjustable Base -Large square base with Φ125 frosted glass and black and white supporting board
