Optical microscope PH-100 series
digitallaboratorybinocular

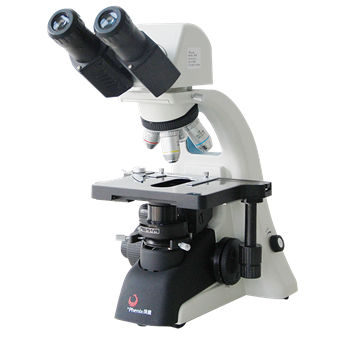

Optical microscope - PH-100 series - Phenix Optics Co., Ltd. - digital / laboratory / binocular
Optical microscope - PH-100 series - Phenix Optics Co., Ltd. - digital / laboratory / binocular
Optical microscope - PH-100 series - Phenix Optics Co., Ltd. - digital / laboratory / binocular - image - 2
Optical microscope - PH-100 series - Phenix Optics Co., Ltd. - digital / laboratory / binocular - image - 3
Optical microscope - PH-100 series - Phenix Optics Co., Ltd. - digital / laboratory / binocular - image - 4
Optical microscope - PH-100 series - Phenix Optics Co., Ltd. - digital / laboratory / binocular - image - 5
Optical microscope - PH-100 series - Phenix Optics Co., Ltd. - digital / laboratory / binocular - image - 6
Add to favorites
Compare this product


Characteristics

Type
optical, digital
Applications
laboratory
Microscope head
binocular
Quality of the objectives
achromatic, plan, plan achromatic
Configuration
benchtop
Light source
LED
Magnification

Max.: 1,600 unit

Min.: 40 unit

Description

Digital imaging system: imported chip, 2 million to 20 million pixels, signal output: USB2.0/usb3.0 Image software functions: manual / automatic exposure, manual / automatic white balance, photo, video, image editing, measurement, image color adjustment, image overlay, particle counting, etc. Viewing head: digital compensation free binocular head, 30°inclined, 360° rotatable, interpupillary distance 48-75mm Eyepiece: Wide field, diopter adjustable, WF10X/20mm, WF16X/15mm Nosepiece : Quadruple, four holes inward ,steel ball positioning Working Stage : Double layer mechanical moving stage, can hold two slice clips Size 160×142mm , moving range 76×52mm Focusing system: coaxial coarse and fine focusing knob , coarse adjustment 22mm, fine adjustment 0.002mm Condenser: Abbe condenser, N.A.=1.25, iris diaphragm Light source: LED, 3W, Compound eyes lighting, adjustable brightness Power : external switching power supply, AC100-240V ※ Seamless connection between Digital photoelectric imaging and optical system; ※ CCD/CMOS camera is really built-in, accurate internal positioning; ※ Original photoelectric imaging splitting structure eliminates the need for push-pull rods to ensure adequate and uniform illumination at any magnification; ※ There is no need to re-adjust the coarse adjustment to ensure that the observation under the binocular is completely synchronized with the computer display; ※ Excellent image quality, like sharp and no color difference, the image is flat and clear.
