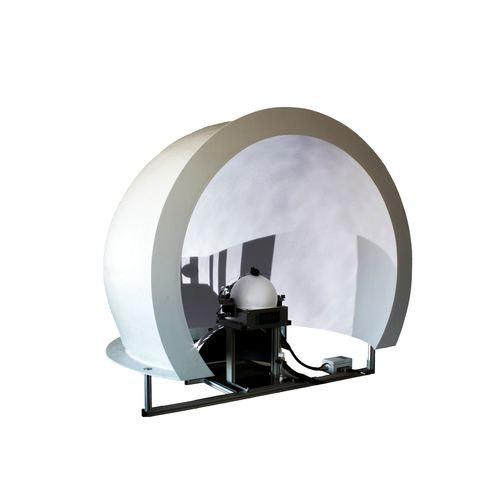

Mice preclinical research treadmill JetBall-Dome

with virtual reality system

Virtual Reality (VR) can be used for mice to investigate brain functions during decision making. The JetBall-Dome is a worldwide unique product with a Dome for mirror projection of a virtual environment and a spherical treadmill with optional operant devices. The JetBall, an air-cushioned spherical treadmill allows a restrained animal to navigate in a virtual environment. The animal can be examined with electrophysiological, imaging and optogenetic methods while it performs behavioural tasks employing navigation, cognition, learning and memory. A quarter-sphere mirror reflects the warped image from a projector onto a spherical dome screen Larger surface for presenting virtual reality Seamless display Predefined experiments or create your own ones with our software Data transfer system to combine JetBall data with external data. Power - Power input voltage - 100-240 V AC Power consumption - 920 W (maximal) Dome sphere - Diameter - 120 cm JetBall Spherical Treadmill with Stand, 20cm for Mice - Ball Holder material - Aluminium Ball diameter - 20 cm Ball material - Polystyrene Projector - Resolution - 1920 x 1080 (Full HD) Light output - 4000 ANSI Lumen Contrast ratio - 10000:1 Aspect ratio - 16:9 XY-Motion-Sensor - Resolution - 200-5700 dpi Max. speed - Up to 4.19 m/s Liquid Reward System - Peristaltic pump, typical flow rate - 0.45 ml/min Lick sensor, material (outer cover) - Polyvinyl chloride Movable Rack - Width - 59.5 cm Depth - 62.0 cm Height (without control monitor) - 98.5 cm
